Miniature Bearings Australia

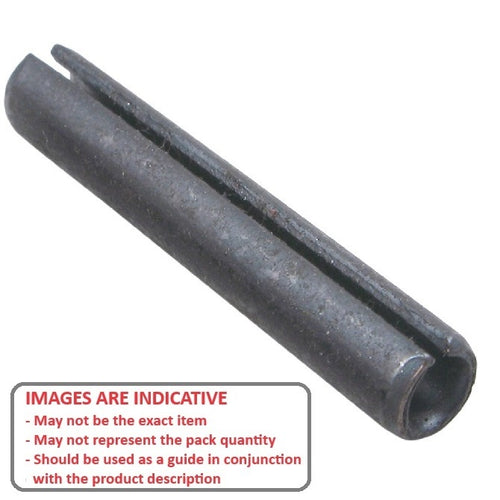

RP050-0800-C - Datasheet
MBA
Category Information
Pins - Roll - Carbon SteelCarbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 5.00 mm
- Length (L) 80.00 mm
- Free Diameter 5.50 mm
- Thickness (S) 0.80 mm
- Chamfer Length (cL) 0.65-0.85 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® 802387
- NoCor® SPM-050-080
- Huyett® SPM-050-080-I
- NoCor® SPM-050-080-I
- SAP5-80
- SAP580
- SPM050080I
