PC050-0710-4 - Datasheet
Brighton Best
Category Information

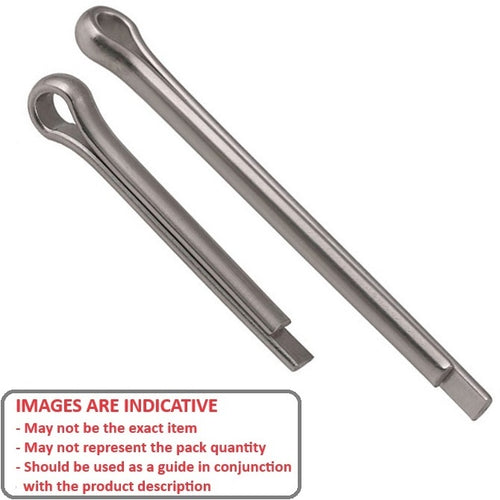

Pins - Split - Stainless SteelStainless Steel Split Pins. Longer lengths may be cut back to a suitable length.
- An expanded range may be available on special order. Please enquire.
- Hole size indicated is maximum for the pin to be effective.
- If the pin you require is not available, you may be able to use the next larger diameter so long as the pin is smaller than your hole size.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Maximum Hole Diameter : 5.0 mm

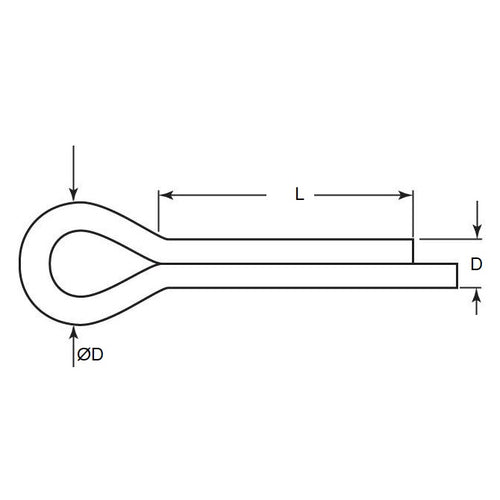

- Nom. Pin Length (L) 71.0 mm
- Nom. Pin Diameter (D) 4.5 mm
- Nom. Overall Length 85 mm
- Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® 153571
