Miniature Bearings Australia
RP050-0500-C - Datasheet
MBA
Category Information

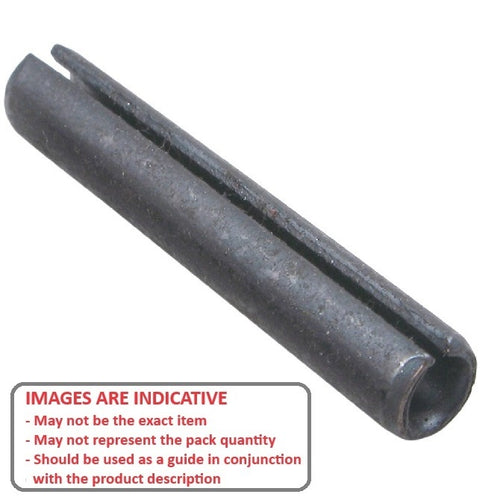

Pins - Roll - Carbon SteelCarbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 5.00 mm
- Length (L) 50.00 mm
- Free Diameter 5.50 mm
- Thickness (S) 0.80 mm
- Chamfer Length (cL) 0.65-0.85 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® 802372
- 91611A318
- NoCor® SPM-050-050
- Huyett® SPM-050-050-I
- NoCor® SPM-050-050-I
- SAP550
- SAP5-50
- SPM050050
- SPM050050I
