Miniature Bearings Australia

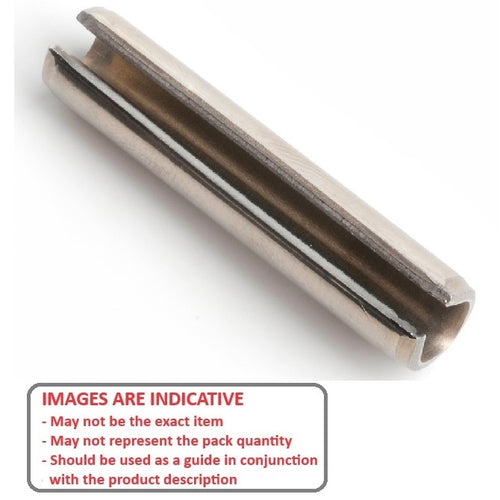

RP050-0260-4 - Datasheet
MBA
Category Information
Pins - Roll - Stainless Steel - 300 Grade300 Grade Stainless Steel Roll Pins. 300 Grade Stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 5.00 mm
- Length (L) 26.00 mm
- Free Diameter 5.50 mm
- Thickness (S) 0.80 mm
- Chamfer Length (cL) 0.65-0.85 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 91610A624
- Huyett® SPM3-050-026-I
- NoCor® SPMS-050-026-304SS
- SRP5-26
- SRP526
- SPMS050026304SS
