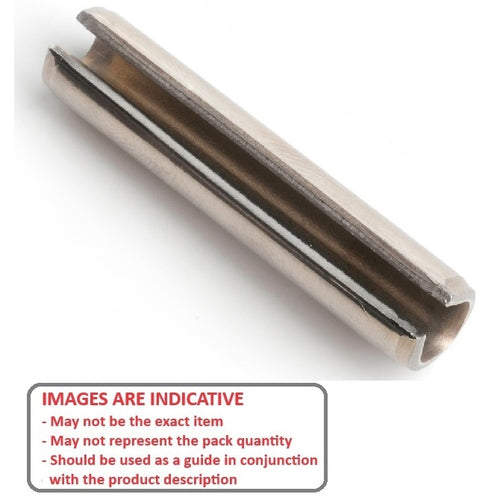

RP050-0180-4 - Datasheet
ENQUIRE
Category Information
Pins - Roll - Stainless Steel - 300 Grade300 Grade Stainless Steel Roll Pins. 300 Grade Stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Diameter (D) : 5.00 mm
- Length (L) 18.00 mm
- Free Diameter 5.50 mm
- Thickness (S) 1.00 mm
- Chamfer Length (cL) 0.30-1.40 mm
- Chamfer Diameter (cD) 4.8 mm
- Standard DIN7343/ISO8750
- Type Standard
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 91610A607
- NoCor® SPM3P-050-018-I
- NoCor® SPMS-050-018-304SS
- SRP5-18
- SRP518
- SPMS050018304SS
- SPM3P050018I
