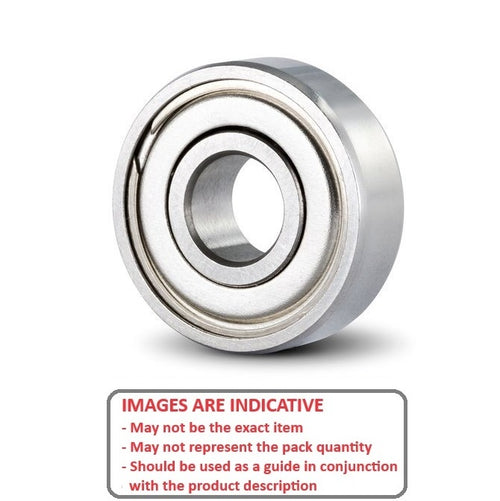

695-ZZS-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data
Double shielded economy bearing
- ID (d) : 5.000 mm
- O.D. (D) 13.000 mm
- Width (B) 4.000 mm
- Precision Grade Economy
- Closure Type ZZS
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 695
- Limiting Speed 40850
- Cage Type Standard
- Static Load Rating KGf 41.8
- Dynamic Load Rating KGf 104.5
- Radii 0.20 mm
- Inner Shoulder (UI) 6.60mm
- Outer Shoulder (UO) 11.20 mm
- Number of Balls 8
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type ZZS
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- RC Helicopter Parts
- HPI - R40 With Clutch Bell And Steering - Bearing
- Serpent® - 705 - Bearing
- Serpent® - 835 1-10 2WD - Bearing
- Serpent® - 835 1-10 4WD - Bearing
- Serpent® - 950 - Bearing
- Serpent® - 950 - Centax Clutch II Bearing
- Serpent® - 950R - Bearing
- Serpent® - 950R With Front Wheel Upgrade - Bearing
- Serpent® - 950R With STE Ten and Front Wheel UP - Bearing
- Serpent® - 950R With Steering and Tensioner - Bearing
- Team Losi® - 1-8 Scale Buggy with clutch bell - Bearing
- Team Losi® - Eight-T - Bearing
- Bergen Machine® - Intrepid 60 - Bearing
- Bergen Machine® - Intrepid Gas - Bearing
- Century® - Falcon 46 - Bearing
- Century® - Falcon 46/50 SE II - Bearing
- Century® - Hawk II - Bearing
- Century® - Hawk Sport All - Bearing
- Century® - Phoenix 52-4-C - Bearing
- Century® - Predator 60 SE - Bearing
- Century® - Predator Max 90 - Bearing
- Century® - Raven 30-50 - Bearing
- Hirobo® - Seadu 30 Evolution - Bearing
- Hirobo® - Seadu 50 Evolution - Bearing
- Hirobo® - Shuttle XX - 2500-041 Bearing
- Hirobo® - Shuttle XX - Bearing
- Hirobo® - Shuttle Z - 2500-041 Bearing
- Hirobo® - Shuttle Z - Bearing
- Hirobo® - Shuttle ZX - 2500-041 Bearing
- Hirobo® - Shuttle ZX - Bearing
- Hirobo® - Shuttle ZXX - 2500-068 Bearing
- Hirobo® - Shuttle ZXX - Bearing
- Hirobo® - SST Eagle Freya - Bearing
- Hirobo® - Tsurgi - 2500-068 Bearing
- JR - 30 - 81004 Bearing
- JR - Ergo 30/46 Complete Kit - Bearing
- JR - Ergo 30/46 Upgrade Kit - Bearing
- JR - Ergo 60 - Bearing
- JR - Vigor CS - Bearing
- Kalt® - Cyclone - Bearing
- Kalt® - Cyclone - Replacement Bearing
- Kalt® - Cyclone II - Bearing
- Kalt® - Cyclone II - Replacement Bearing
- Kalt® - EnForcer ZR - 32005 Bearing
- Kalt® - EnForcer ZX - Bearing
- Kyosho® - CONCEPT 30 DX - Bearing
- Kyosho® - CONCEPT 30 SE - Bearing
- Kyosho® - CONCEPT 30 SR-T - Bearing
- Kyosho® - CONCEPT 30 SX - Bearing
- Kyosho® - CONCEPT 30-DX - 56 Bearing
- Kyosho® - CONCEPT 30-SE - 56 Bearing
- Kyosho® - CONCEPT 30-SX - 56 Bearing
- Kyosho® - CONCEPT 60 - Bearing
- Kyosho® - CONCEPT 60 - Replacement Bearing
- Kyosho® - CONCEPT 60 R - Replacement Bearing
- Kyosho® - CONCEPT 60 SR - Bearing
- Kyosho® - NEXUS 30 - Bearing
- Miniature Aircraft® - Fury - Bearing
- Miniature Aircraft® - Fury Extreme - Bearing
- Miniature Aircraft® - X-Cell 30-40 - Replacement Bearing
- Miniature Aircraft® - X-Cell 30-40 All - Bearing
- Miniature Aircraft® - X-Cell 50-60 - Replacement Bearing
- Miniature Aircraft® - X-Cell 50-60 All - Bearing
- Schluter® - Futura - Replacement Bearing
- Schluter® - Futura SS - Bearing
- Schluter® - Junior 50 - 3320 Bearing
- Schluter® - Junior 50 - Bearing
- Schluter® - Junior 50 - Replacement Bearing
- Schluter® - Magic - 3320 Bearing
- Schluter® - Magic - Bearing
- Schluter® - Magic - Replacement Bearing
- Schluter® - Millenium 60 Upgrade Kit - Bearing
- Schluter® - Scout II - 3320 Bearing
- Schluter® - Scout II - Replacement Bearing
- Thunder Tiger® - Raptor 30 Complete Kit - Replacement Bearing
- Thunder Tiger® - Raptor 60 V2 - Bearing
- Thunder Tiger® - Raptor 90 SE - Bearing
Cross References
- Misumi® C-E695ZZ
- CE695ZZ
- 695 Basic Size Ref
