SMR105A-ZZ-MC3 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

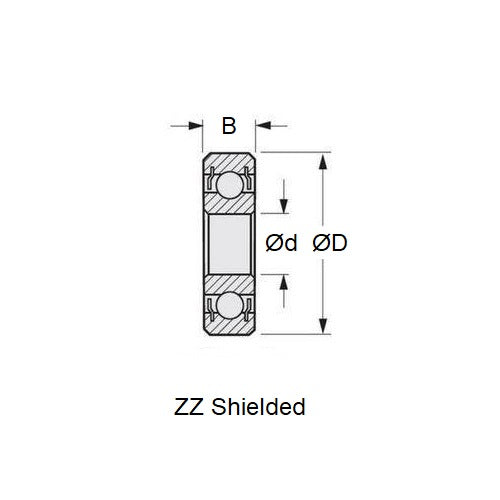

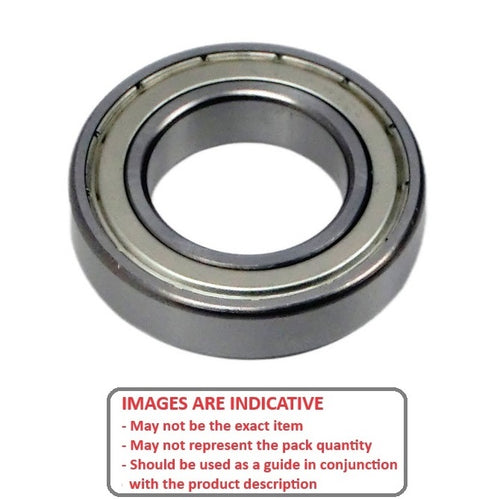

Double shielded standard stainless steel bearing
- ID (d)
:
5.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.197 in.) - O.D. (D)
10.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.394 in.) - Width (B)
4.000
mm
+ 0.000 / - 0.125
(Equiv. 0.157 in.) - Precision Grade Abec 1
- Closure Type ZZ
- Bearing Type Radial
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part MR105A
- Limiting Speed 50000
- Cage Type Crown
- Static Load Rating KGf 17
- Dynamic Load Rating KGf 44
- Radii 0.15 mm
- Inner Shoulder (UI) 6.00mm
- Outer Shoulder (UO) 8.40 mm
- Number of Balls 8
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- Fishing Reel Parts
- RC Helicopter Parts
- Jarvis Walker® - Intruder 650V2 - Spool Bearings F ront and Rear
- Align® - Trex 600 CF - Replacement Bearing
- Bergen Machine® - Intrepid Gas - Replacement Bearing
- Century® - Ninja Pro® 30/46 All - Replacement Bearing
- Evo Flight® - Shogun V2 - Replacement Bearing
- Gaui® - Hurricane 550 - Replacement Bearing
- Hobby Lobby® - Art-Tech Falcon 3D - Replacement Bearing
- JR - Ergo 30/46 Complete Kit - Replacement Bearing
- JR - Ergo 30/46 Upgrade Kit - Replacement Bearing
- Kyosho® - CALIBER 30 - Replacement Bearing
- Kyosho® - CONCEPT 30 SR-T - Replacement Bearing
- Kyosho® - CONCEPT 60 SR - Replacement Bearing
- Kyosho® - NEXUS 30 - Replacement Bearing
- Mikado® - Logo 10 - Replacement Bearing
- Mikado® - Logo 10 3D Version - Replacement Bearing
- Mikado® - Logo 14 - Replacement Bearing
- Mikado® - Logo 14 Carbon - Replacement Bearing
- Mikado® - Logo 20 - Replacement Bearing
- Protech® - Shogun V2 With Upgrade - Replacement Bearing
- Protech® - Zoom 400 - Replacement Bearing
- Schluter® - Eolo Pro - Replacement Bearing
- Schluter® - Eolo Spirit Pro - Replacement Bearing
- Schluter® - Spirit Pro - Replacement Bearing
- Synergy® - N9 - Replacement Bearing
- Thunder Tiger® - Raptor 30 - Replacement Bearing
- Thunder Tiger® - Raptor 50 SE - Replacement Bearing
- Thunder Tiger® - Raptor 50 SE Complete Kit - Replacement Bearing
- Thunder Tiger® - Raptor 50 Titan - Replacement Bearing
- Thunder Tiger® - Raptor 50 V2 - Bearing
- Thunder Tiger® - Raptor 60 V2 - Bearing
- Thunder Tiger® - Raptor 90 SE - Bearing
Cross References
- 7804K106
- Reid Tool® DMB-68
- Stainless MR105AZZMC3
- Stainless MR105A-ZZ-MC3
- SSISO MR105ZZ
- SSISO MR105-ZZ
- GRW S694-1002-2Z
- Shielded Width A SMR105/4
- Shielded SMR105A / 4
- GRW SS694-1002-2Z
- Shielded Width A SSMR105/4
- Shielded SSMR105A / 4
- SSMR105AZZMC3
- SSL1050-ZZ
- SSMR105ZZ
- SSMR105-ZZ
- SSL1050ZZ
- SSMR105A-ZZMC3
- SS-L1050-ZZ
- DDL1050ZZ
- DD-L1050-ZZ
- DDL1050-ZZ
- S69410022Z
- SS69410022Z
- MR105AZMC3
- MR105A-Z-MC3
- DMB68
- MR105A Basic Size Ref
