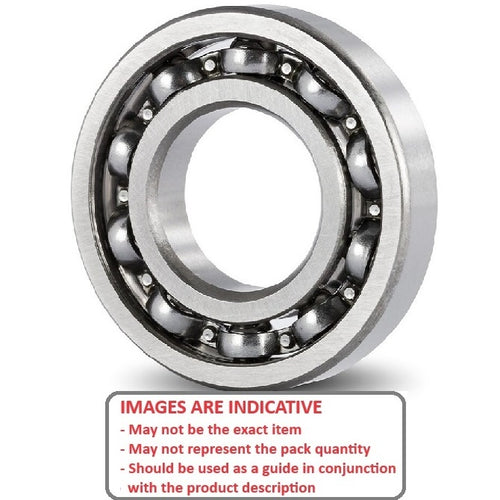

SMR105-MC3-JP6-AF12 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data
Open P6 precision bearing with low-torque cage and light oil lubricant
- ID (d)
:
5.000
mm
+ 0.000 / - 0.007
(Equiv. 0.197 in.) - O.D. (D)
10.000
mm
+ 0.000 / - 0.007
(Equiv. 0.394 in.) - Width (B)
3.000
mm
+ 0.000 / - 0.120
(Equiv. 0.118 in.) - Precision Grade P6
- Closure Type Open
- Bearing Type Radial
- Material Stainless Steel AISI 440C
- Lubrication Type Oil
- Lubrication Name AF12 Aeroshell Fluid 12
- Basic Part MR105
- Limiting Speed 63000
- Cage Type Crown
- Static Load Rating KGf 17
- Dynamic Load Rating KGf 44
- Radii 0.15 mm
- Inner Shoulder (UI) 6.00mm
- Outer Shoulder (UO) 7.80 mm
- Number of Balls 8
- Clearance MC3 (5 to 10)
- Precision Grade P6
- Closure Type Open
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- Dental Handpiece Parts
- RC Helicopter Parts
- RC Nitro Engine Parts
- NSK® - E4R Slow Speed - Contra Angle Green Band - Bearing for Chuck End
- NSK® - EX12 - Bearing for Shaft
- NSK® - EX5 - Bearing for Shaft
- NSK® - EX6 - Bearing for Shaft
- NSK® - EX6 Blue Band - Bearing
- NSK® - EX7 - Bearing for Shaft
- NSK® - EX8 - Bearing for Shaft
- NSK® - EX9 - Bearing for Shaft
- NSK® - IS65 - Bearing for Shaft
- Sirona® - TEH40 - Bearing for Shaft
- Kalt® - B28-30 - Bearing
- Kalt® - B28-30 - Replacement Bearing
- Kalt® - EnForcer ZR - 33004 Bearing
- Kalt® - EnForcer ZX - Bearing
- Schluter® - Eolo R22 - Bearing
- Enya® - 2C - Cam Shaft Bearing
- Enya® - 46 - 4 Stroke New - Camshaft Bearing
- Enya® - 46 - 4 Stroke Old - Camshaft Bearing
- Enya® - 4C - 35 - Cam Shaft Bearing
- Enya® - 4C Cam Shaft - 90 - Cam Shaft Bearing
- Enya® - 4CII - 120 - Cam Shaft Bearing
- Enya® - 53 - 4 Stroke - Camshaft Bearing
- Enya® - 53 4C - 50 - Cam Shaft Bearing
Cross References
- Generic Dental 21005
- Generic Dental 25273
- Generic Dental 7025273
- Star® 7025273
- Generic Dental B10321-1005
- KaVo® B10321-1005
- Similar Part SMR105P6
- Similar Part SSMR105P6
- MR105 Basic Size Ref
