MAG-CP-052-44-09-LP - Datasheet

MBA

Category Information

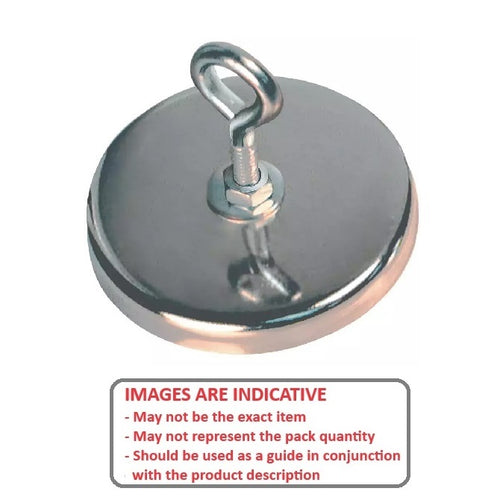

Magnets - Cup Assemblies Loop

Cup Assemblies Loop Magnets. Ideal for hanging signs and lights, retrieving steel items from tanks, vats, bins etc.

  • Permanent magnet (neodymium or ceramic) housed in a metal cup to concentrate and amplify its holding power, making it much stronger than the magnet alone.
  • Assemblies are designed for holding, lifting, and mounting applications, with a steel cup protecting the brittle magnet and directing the magnetic force to the working surface.
  • Plated cup with a 9.525mm ID loop.

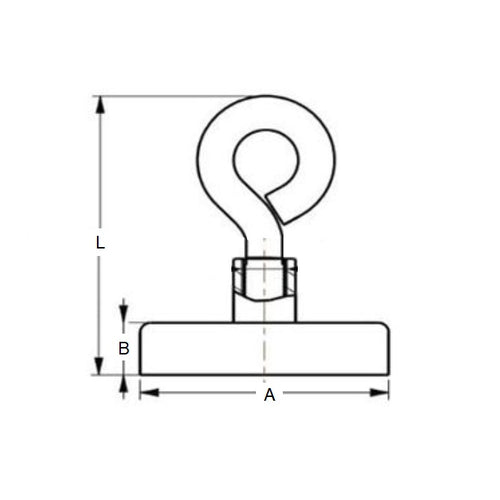

Product Data

  • Diameter (A) : 51.56 mm
    (Equiv. 2.03 in.)
  • Thickness (B) 44.45 mm
    (Equiv. 1.75 in.)
  • Holding Value 8.62 kg
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • IM481
    • IM-481
