KF100M-50-FIT-WBK - Datasheet
MBA
Category Information

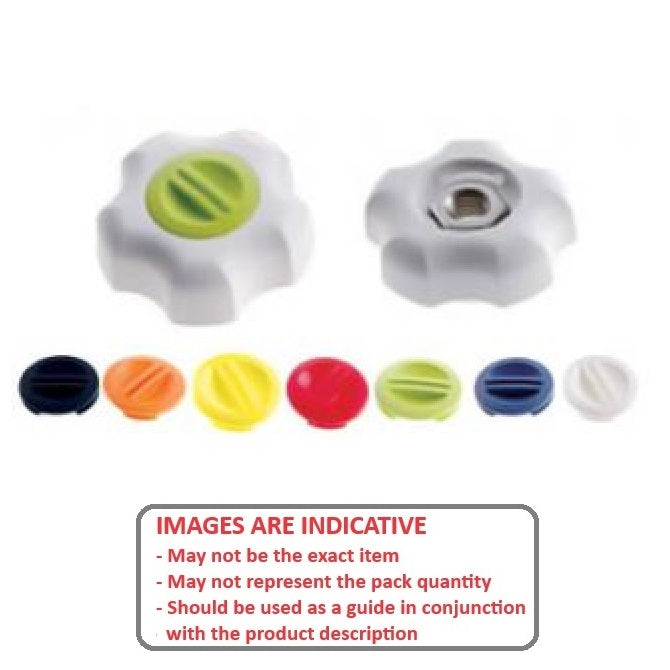

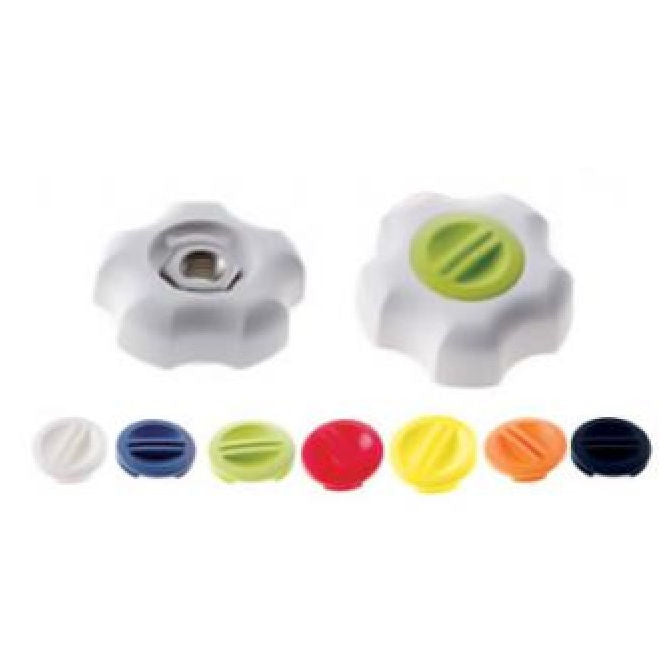

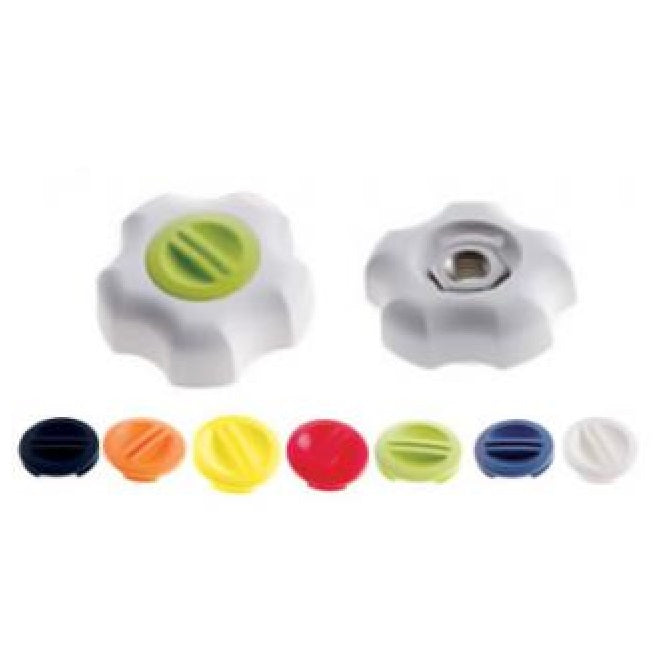

Knobs - Thumb - For Hex Head ScrewFor Hex Head Screw Thumb Knobs. These plastic knobs fit hex head bolts or set screws, not socket cap screws.
- An expanded range may be available on special order. Please enquire.
- To fit Hex Head bolts or Set Screws Screws (Not included)
- Screw secured in hex recess inside the knob with a twist turn plastic cap
- Made From Plastic
Product Data
- Suitable Hex Screw Thread : M10

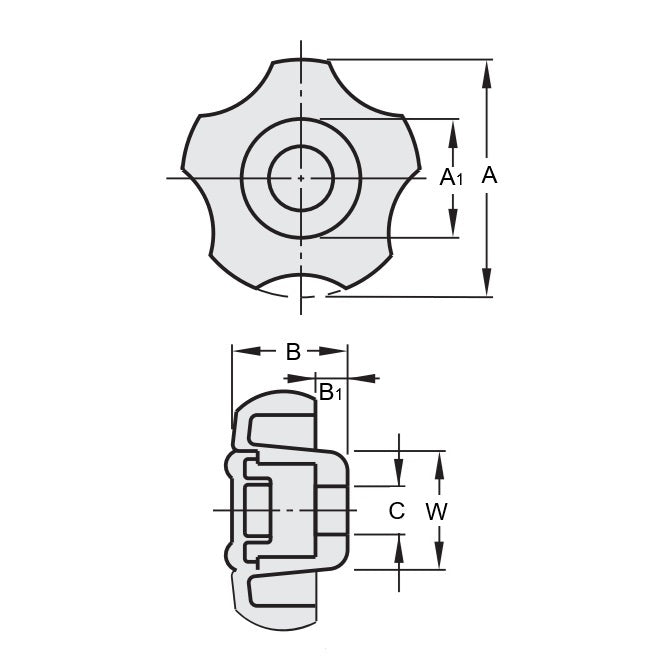

- Knob Diameter (A) 50.0 mm
- Knob Thickness (B) 22.0 mm
- Knob / Cap Colour White / Black
- Style Fit Own Screw
- Screw Hex AF 17 mm
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- KF100M50FITBK
