REM-050-R-CT - Datasheet
MBA
Category Information

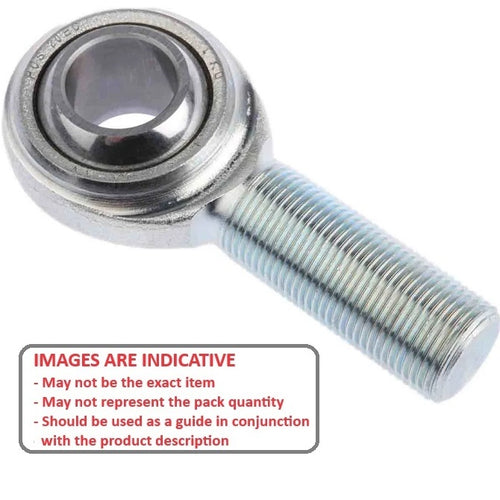

Rod Ends - Male - Steel - Tempered Steel PTFE LinedTempered Steel PTFE Lined Steel Male Rod Ends. Imperial and Metric. Forged tempered steel. Rolled thread. Surface galvanised. Also known as Heim Joints. Nylon - ptfe - glass compound race.
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.

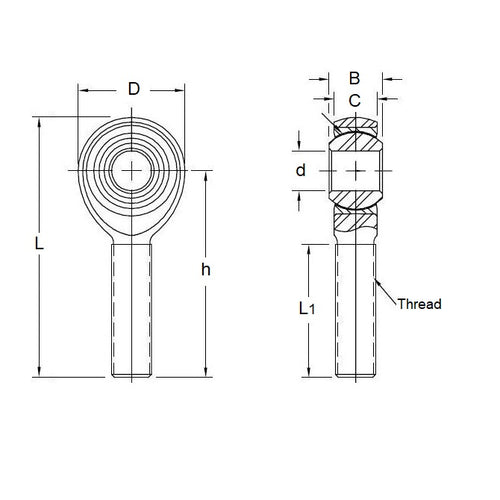

Product Data
- Eye Size (d1) : 5 mm
- Overall Length (L) 42.500 mm
- Thread Size M5x0.8 Right
- Min. Thread Length (l2) 33.00 mm
- Head Width (W) 6.00 mm
- Eye Width (W1) 8.00 mm
- Head Diameter (D) 18.00 mm
- Centre Height (l1) 33.00 mm
- Grease Nipple No
- Material Tempered Steel with PTFE
Product Compliance and Data
Additional Resources
Cross References
- Misumi® E-GZW5
- EGZW5
