KW-056-094-217-C - Datasheet
ExaktKey
Category Information

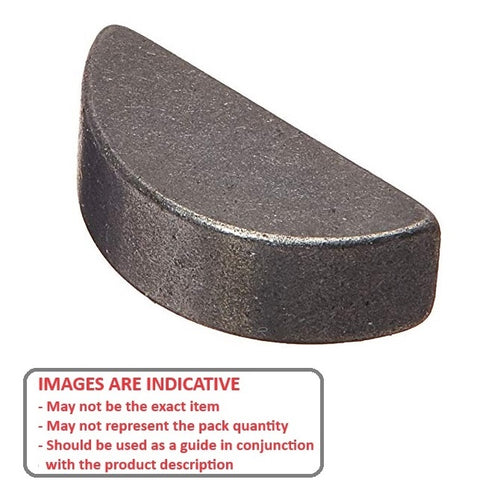

Keys - Woodruff - PlainPlain Woodruff Keys. Plain carbon steel
- An expanded range may be available on special order. Please enquire.
Product Data
- Thickness (S)
:
5.56
mm
+/- 0.025
(Equiv. 0.219 in.) - Approx. Height (H)
9.4
mm
+/- 0.250
(Equiv. 0.37 in.) - Approx. Length (L) 21.74 mm
- Basis Diameter (D) 22.23 mm
- Finish Plain
- Hardness HRB 80
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- ANSI 707
- 98481A145
- Key Size 12
- Huyett® WKC-012
- NoCor® WKC012
- KW056222C
