RP056-0127-Z - Datasheet
Brighton Best
Category Information

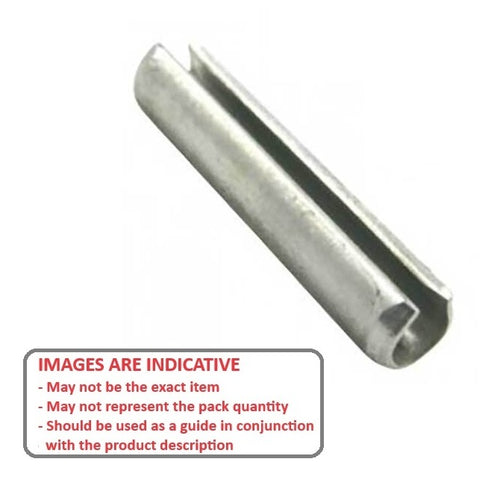

Pins - Roll - Zinc PlatedZinc Plated Roll Pins. Zinc plated spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Diameter (D) : 5.56 mm
- Length (L) 12.70 mm
- Free Diameter 6.12 mm
- Thickness (S) 1.22 mm
- Chamfer Length (cL) 0.28-1.65 mm
- Chamfer Diameter (cD) 5.4 mm
- Standard DIN1481 / ISO8752
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 90692A293
- Brighton Best® V80284
