REM-050-R-CB - Datasheet
MBA
Category Information

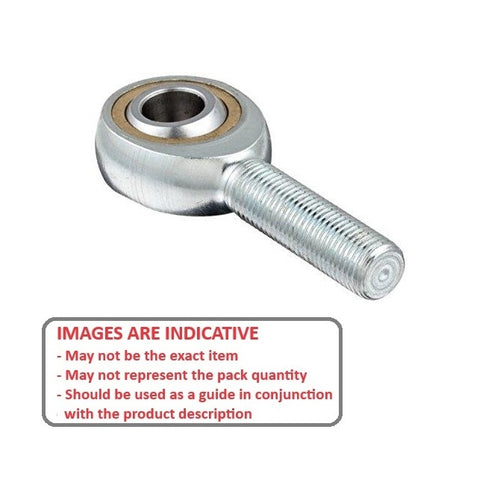

Rod Ends - Male - Steel - Bronze Lined - StandardStandard Bronze Lined Steel Male Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data

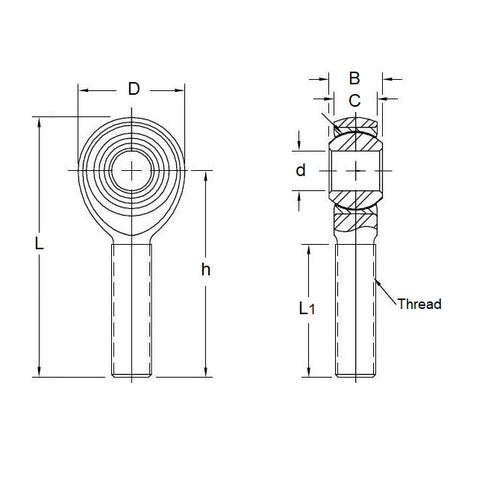

- Eye Size (d1) : 5.00 mm
- Overall Length (L) 41.00 mm
- Thread Size M5x0.8 Right
- Min. Thread Length (l2) 20.00 mm
- Head Width (W) 6.00 mm
- Eye Width (W1) 8.00 mm
- Head Diameter (D) 16.00 mm
- Centre Height (l1) 33.00 mm
- Grease Nipple No
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- RINO® BEM-05-RH
- ASAHI® JAM5
- KWK KM5
- IKO POS5
- Nachi® POS-5
- NTN® SMI-5
- BEM05RH
- SMI5
