ORB-00528-178-N70-009 - Datasheet
MBA
Category Information

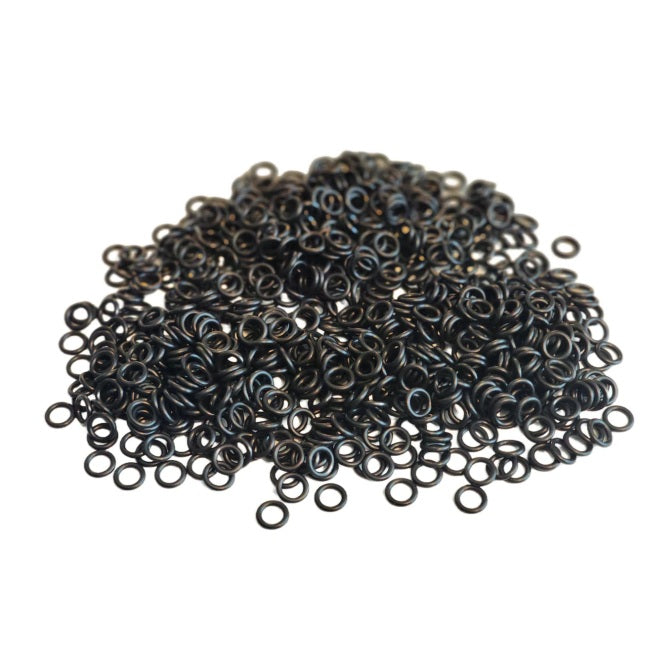

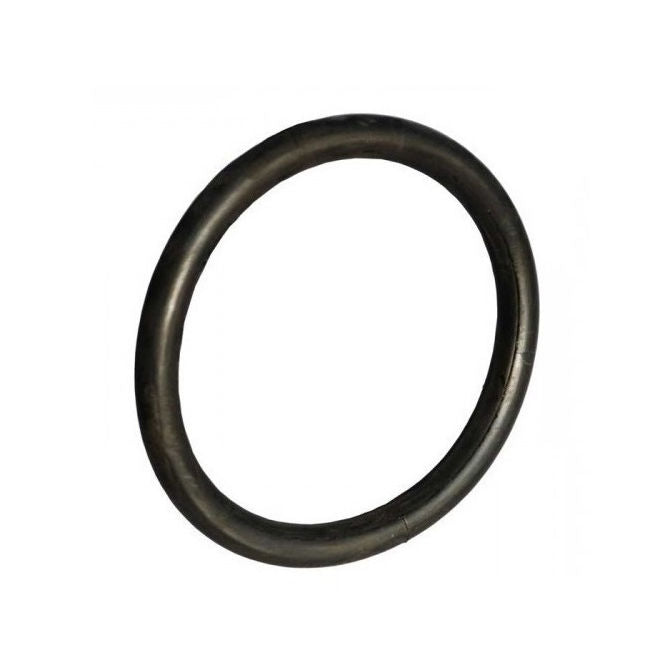

O-Rings - General Purpose - Nitrile Rubber BulkNitrile Rubber Bulk General Purpose O-Rings. General purpose. Includes o-rings for dental handpiece applications.
- Mulitple packs may be supplied together in a singular package.
- Temperature Range: -30 Deg C to +90 Deg C.
- Nitrile: Excellent resistance to mineral oil based fluids, hydrocarbon fuels, greases and water.
- Not suitable for aromatic hydrocarbons, chlorinated hydrocarbons, brake fluid and some fire resistant hydraulic fluids.
- Bulk stock orders are the most economical way to purchase, but smaller packs are available for some sizes.
Product Data
- Inside Diameter (ID)
:
5.28
mm
(Equiv. 0.208 in.) - Section (t)
1.78
mm
(Equiv. 0.07 in.) - Colour Black
- Hardness Duro 70
- Material Nitrile (NBR, BUNA-N)
Product Compliance and Data
Additional Resources
Cross References
- OR00528178N70009
- OR-00528-178-N70-009
