NT079C-WC-MI - Datasheet

MBA

Category Information

Nuts - Wing - Malleable Iron - Style C

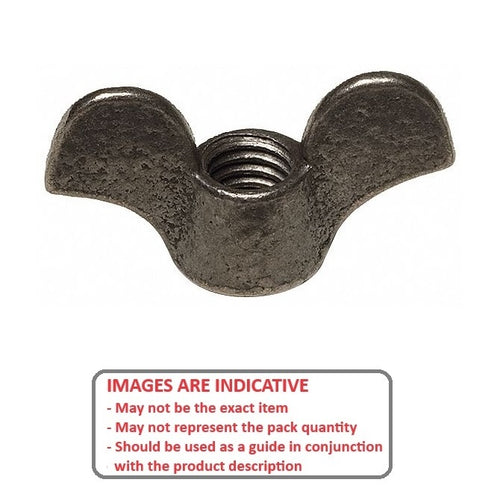

Style C Malleable Iron Wing Nuts. Malleable iron with a tumbled finish.

    Product Data

    • Thread Size : 5/16-18 UNC (7.94mm)

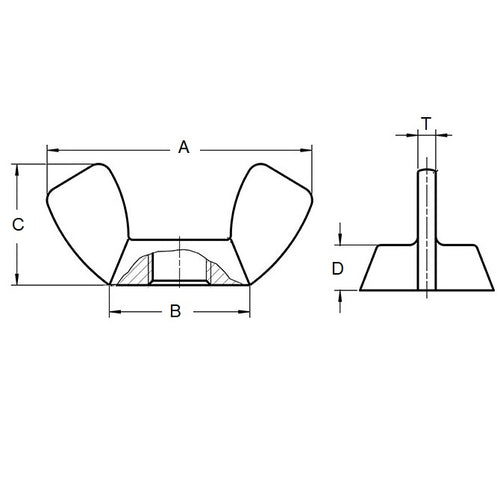

    • Overall Length (A) 36.49 mm
    • Base Diameter (B) 12.700 mm
    • Overall Height (C) 17.463 mm
    • Material Iron
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

    Cross References

    • Reid Tool® MIN-13
    • MIN13
