T-0040-0090-G-S440 - Datasheet
MBA
Category Information
Bearings - Thrust Ball - Grooved - Stainless SteelStainless Steel Grooved Thrust Ball Bearings. 3 Piece Thrust Bearings Open Type
- Thrust ball bearings provide for axial loads. They are designed to handle forces that push or pull along the axis of a rotating shaft
- Commonly used in automotive, electric motors, marine propulsion, pumps and compressors, aerospace applications, industrial machinery, and wind turbines.
- An expanded range may be available on special order. Please enquire.
- These bearings are designed so that when one ring turns, the other remains stationary.
- Some have a larger bore on one side allowing a shaft with no steps to pass through. Others have identical bores on each race, requiring a stepped shaft.
- Some have a reduced OD on one race allowing seating into an unstepped housing bore, whilst others will require a stepped housing to allow one ring to rotate.
- Please be sure to take note of the figures shown for ID and OD of both races to ensure you select the correct bearing.
Product Data

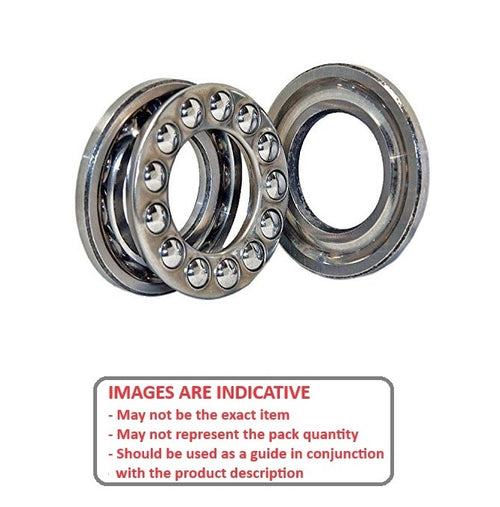

Thrust bearing with 2 Grooved Washers and retainerd Balls

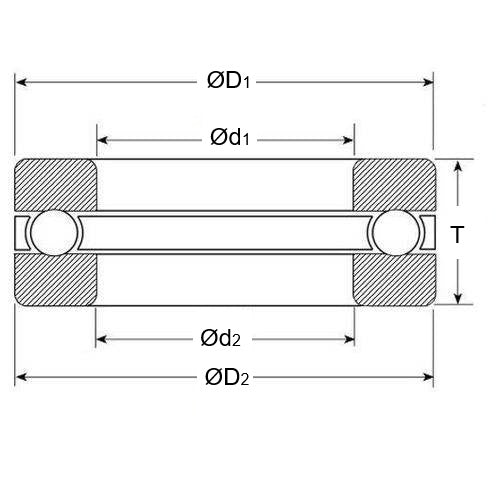

- Shaft Diameter (d1) : 4.000 mm
- O.D. (D1) 9.000 mm
- Thickness (T) 4.000 mm
- Bore (d2) 4.200 mm
- OD (D2) 8.800 mm
- Dynamic Load Capacity 77 kgf
- Cage Type AIS I 440C Stainless Steel
- Material Stainless Steel AISI 440C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- RC Helicopter Parts
- HPI - R40 With Clutch Bell And Steering - Thrust Bearing
- Picco® - RS600 Gas 1/10 - Thrust Bearing
- Serpent® - 9000 - Thrust Bearing ID Needs enlarging on one washer
- Serpent® - Excel 1/8 4WD - Thrust Bearing ID Needs enlarging on one washer
- Serpent® - Impact-2 2WD Pro - Centax Clutch Thrust Bearing 4.2mm ID on one plate
- Serpent® - Impact-2 2WD Sport - Centax Clutch Thrust Bearing
- Serpent® - Impact-2 4WD Sport - Centax Clutch Thrust Bearing 4.2mm ID on one plate
- Serpent® - Vector - Thrust Bearing
- Serpent® - XL900 MkII - Thrust Bearing
- Century® - Falcon 46/50 SE II - Thrust Bearing
- Century® - Predator 60 SE - Thrust Bearing
- Century® - Predator 60/70 - Thrust Bearing
- Century® - Predator Gas SE Complete - Thrust Bearing
- Century® - Predator Gasser Complete - Thrust Bearing
- Century® - Predator Max 90 - Thrust Bearing
- GMP - Cobra - 457 Thrust Bearing
- GMP - Cobra - 6302 Thrust Bearing
- GMP - Competition - 457 Thrust Bearing
- GMP - Competition - 6302 Thrust Bearing
- GMP - Cricket - 457 Thrust Bearing
- GMP - Cricket - 6302 Thrust Bearing
- GMP - Elite Rotor Head - 457 Thrust Bearing
- GMP - Elite Rotor Head - 6302 Thrust Bearing
- GMP - Legend - 457 Thrust Bearing
- GMP - Legend - 6302 Thrust Bearing
- GMP - Rebel - 457 Thrust Bearing
- GMP - Rebel - 6302 Thrust Bearing
- GMP - Stork - 457 Thrust Bearing
- GMP - Stork - 6302 Thrust Bearing
- Hirobo® - Seadu 30 Evolution - Thrust Bearing
- Hirobo® - Seadu 50 Evolution - Thrust Bearing
- Hirobo® - Shuttle ZXX - 2500-062 Thrust Bearing
- Hirobo® - Shuttle ZXX - Thrust Bearing
- Hirobo® - Tsurgi - 2500-062 Thrust Bearing
- JR - Ergo 60 - Thrust Bearing
- JR - Vigor CS - Thrust Bearing
- Miniature Aircraft® - X-Cell 50-60 - Thrust Bearing
