SFMR84A-ZZ-MC3 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Flanged - Precision - 440C Stainless440C Stainless Precision Flanged Single Row Ball Bearings. Stainless Steel Bearings with Flanges.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with flanges.
- Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.
Product Data

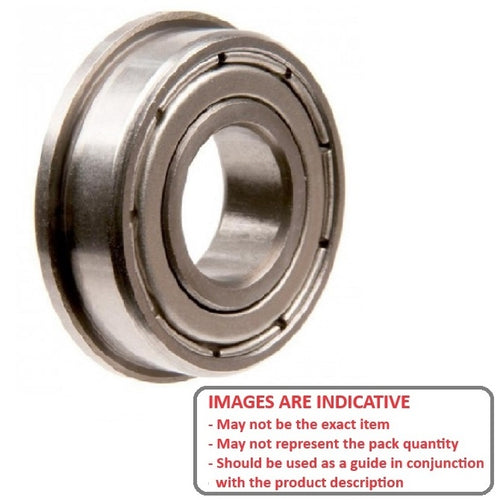

Double shielded flanged stainless steel bearing

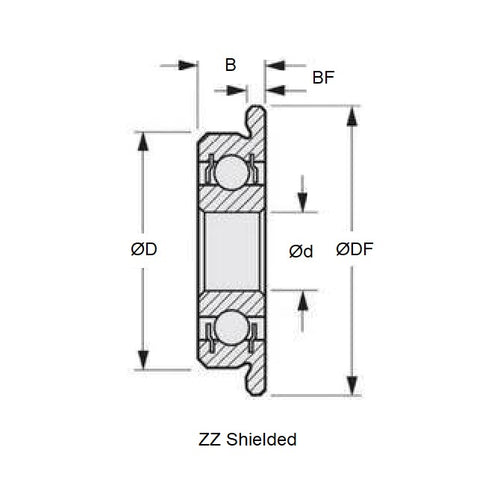

- ID (d)
:
4.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.157 in.) - O.D. (D)
8.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.315 in.) - Width (B)
3.000
mm
+ 0.000 / - 0.125
(Equiv. 0.118 in.) - Flange Diameter (DF) 9.200 mm
- Flange Width (BF) 0.600 mm
- Precision Grade Abec 1
- Closure Type ZZ
- Bearing Type Radial Flanged
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part FMR84A
- Limiting Speed 56000
- Cage Type Standard
- Static Load Rating KGf 14
- Dynamic Load Rating KGf 40
- Radii 0.15 mm
- Inner Shoulder (UI) 5.00mm
- Outer Shoulder (UO) 7.40 mm
- Number of Balls 7
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZ
- Max Temperature 120 Deg. C
