Miniature Bearings Australia

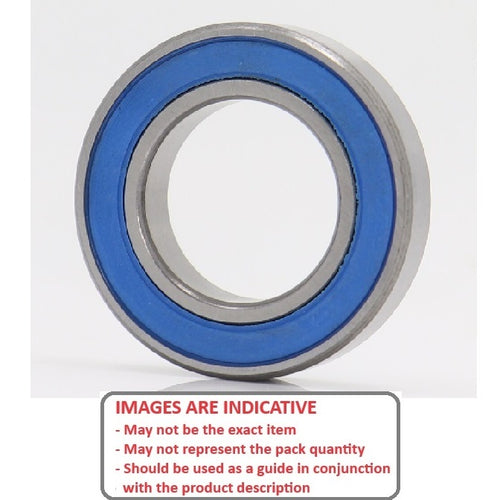

MR74A-2RB-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

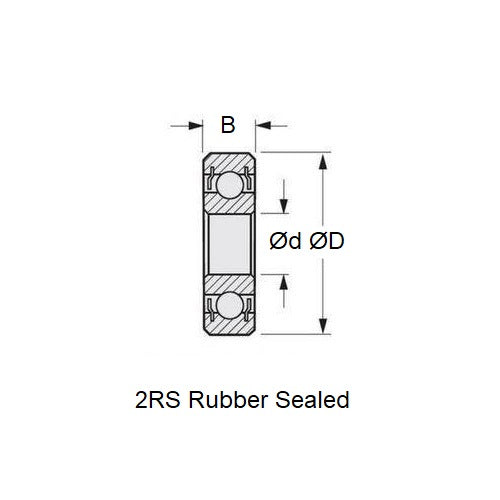

- ID (d) : 4.000 mm
- O.D. (D) 7.000 mm
- Width (B) 2.500 mm
- Precision Grade Economy
- Closure Type 2RB
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part MR74A
- Limiting Speed 51300
- Cage Type Standard
- Static Load Rating KGf 10.4
- Dynamic Load Rating KGf 24.7
- Radii 0.10 mm
- Inner Shoulder (UI) 4.80mm
- Outer Shoulder (UO) 6.30 mm
- Number of Balls 11
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type 2RB
- Max Temperature 80 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- Corally® - C4 - Bearing
- Duratrax® - Vendett ST Truck - Bearing
- Hot Bodies® - Cyclone - Bearing
- HPI - RS4 Pro 4 - Bearing
- Kyosho® - EP Spider - Bearing
- Kyosho® - Half 8 Mini Inferno - Bearing
- Kyosho® - Pure Ten - Bearing
- Kyosho® - TF3 Series - Bearing
- Kyosho® - TF-4 Spider Type R - Bearing
- Robitronics® - Scalpel Pro 1/8 - Bearing
- Serpent® - Freedom T1 - Bearing
- Team Losi® - Mini LST - Bearing
- Team Losi® - Mini T - Bearing
- Team Losi® - Mini T Pro - Bearing
- Team Losi® - Mini ZT - Bearing
- Team Magic® - G4S - Bearing
- Traxxas® - Jato - Bearing
- Trinity® - Itsy Bitsy Spyder - Bearing
- Xray® - FK5 Electric - Bearing
- Xray® - T1 - Bearing
- Xray® - T1 Evo 2 - Bearing
- Xray® - T1 Factory Kit - Bearing
- Xray® - T1 FK 05 Complete - Bearing
- Xray® - T1 Racer - Bearing
- Xray® - T1M Mini - Bearing
- Xray® - T2 Complete - Bearing
- Xray® - T2 With Steering - Bearing
- Xray® - X Ray - Bearing
Cross References
- Sealed Width A MR74 / 2
- Sealed MR74A / 2
- MR74A Basic Size Ref
