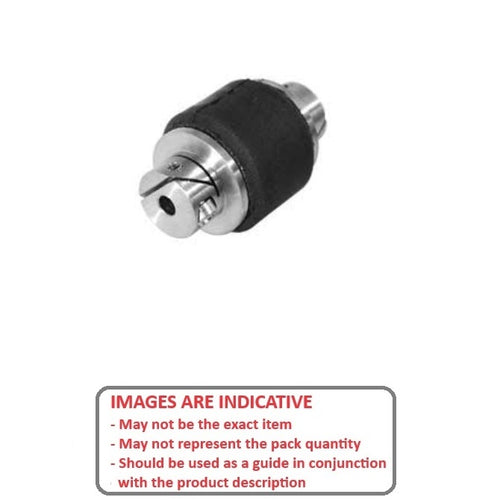

CP-040-060-21-032-NF-S3S - Datasheet
MBA
Category Information
Couplings - Neo FlexNeo Flex Couplings. 0.71 to 1.27 Nm.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
- 303 stainless steel with 73 durometer neoprene centre.
- Shaft to shaft insulation.
- Torsional vibration isolation.
- Ribbed style are more flexible than smooth style.
- Bore Tolerances: +0.025 / -0.000.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

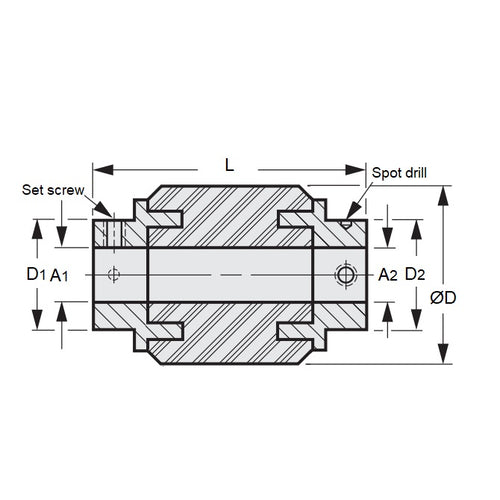

- Bore (A1) : 4.000 mm
- Bore (A2) 6.000 mm
- OD 20.6 mm
- Overall Length (L) 31.8 mm
- Max. Torque 0.84 n.m
- Max. Speed Not Listed RPM
- Hub Config. / Hub Diameter(s) Set Screw / 9.500 / 12.700 mm
- Body Type Smooth
- Angle Misalignment 1 °
- Max. Parallel Offset 0.130 mm
- Material Stainless Steel 303 and Neoprene
Product Compliance and Data
Additional Resources
Cross References
- S50PSSM0406
