Miniature Bearings Australia
TPM-0400-06000-M - Datasheet
ENQUIRE
Category Information
Pins - Taper Metric - Carbon SteelCarbon Steel Taper Metric Pins. Metric Sizes Tapered 1:50. DIN 1 - A - Ground Ra 0.8um
- An expanded range may be available on special order. Please enquire.
- Metric Sizes to DIN 1.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

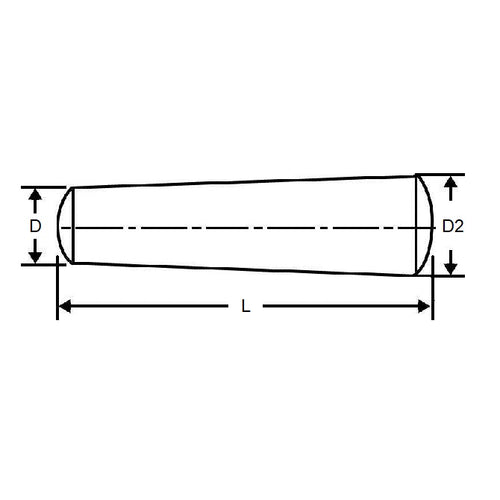

- Nom. Small End Diameter (D) : 4.00 mm
- Length (L) 60.00 mm
- Nom. Large End Diameter (D2) 5.20 mm
- Hardness 21 Rc +/- 8
- Material Carbon Steel Unhardened
Product Compliance and Data
Additional Resources
Cross References
- 98445A428
- NoCor® TPM-040-060
- TPM040060
- MD0001MC0040X060
