PSP-040-018-S2 - Datasheet

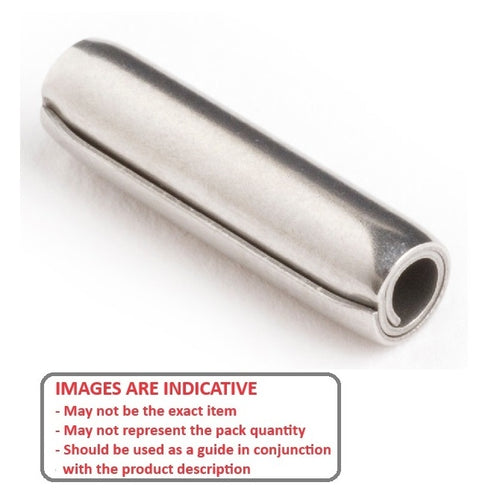

Name: 1052626 | PSP-040-018-S2 (PK-5) --- Coiled Pins - 4x18 - 4.00 - 4.12 - Stainless Steel 304 Similar to A2, 18-8 HRB80 Pin
Rating: 5.0 (1 reviews)

ENQUIRE

Category Information

Pins - Coiled - Stainless - Standard Duty

Standard Duty Stainless Coiled Pins. Spirol Pins. Coiled roll pin.

An expanded range may be available on special order. Please enquire.

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

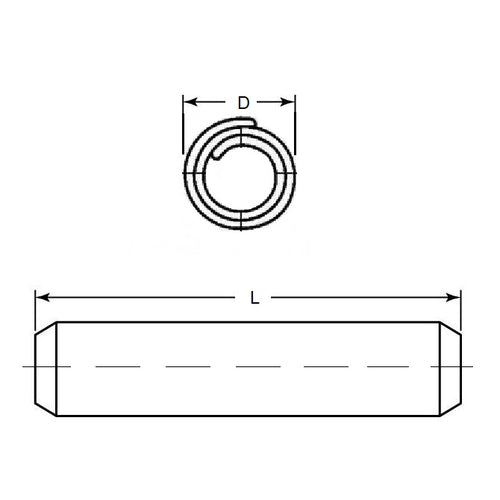

Nominal Hole Diameter : 4.00 mm
Length 18.00 mm _{+/- 0.50}
(Equiv. 0.709 in.)
Drill Size 4.00 - 4.12 mm
Loose Diameter 4.20 - 4.40 mm
ISO Standard Duty ISO8750 / ASME B18.8.3M
Hardness Unhardened
Material Stainless Steel 304 (Similar to A2, 18-8) HRB80

Country of Origin: DE

Product Compliance and Data

RoHs Statement
REACH Statement
CoC

Additional Resources

Master Pins Catalogue PDF
Roll Pins

Measuring Small Parts
Metalworking Resource Guide

Cross References

EP4-18
EP418
