KW-040-050-127-C - Datasheet

ExaktKey

Category Information

Keys - Woodruff - Plain

Plain Woodruff Keys. Plain carbon steel

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thickness (S) : 4.00 mm +/- 0.025
    (Equiv. 0.157 in.)
  • Approx. Height (H) 5.0 mm +/- 0.250
    (Equiv. 0.197 in.)
  • Approx. Length (L) 12.65 mm
  • Basis Diameter (D) 13.00 mm
  • Finish Plain
  • Hardness HRB 80
  • Material Carbon Steel C45
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 98490A190
  • NoCor® KU413
  • Huyett® WKMC-040050
  • NoCor® WKMC040050
  • KW040130C
  • KU4-13
  • A9C49M04013
View full details

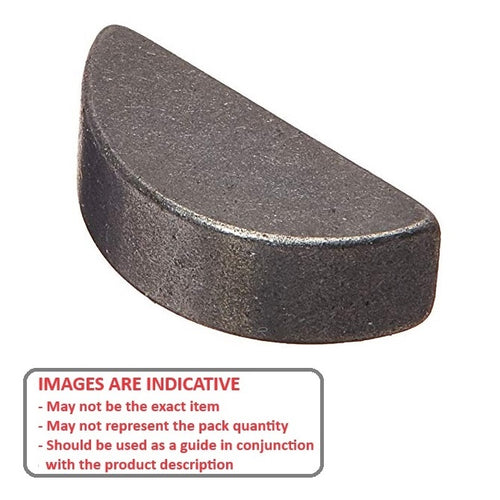

KW-040-050-127-CDiagramKW-040-050-127-CImage
