P-020G-045-175A - Datasheet
MBA
Category Information

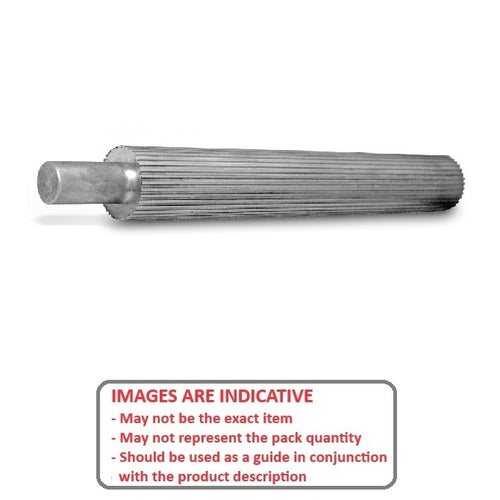

Pulleys - Metric Timing Stock - 2.000mm Pitch - GT - AluminiumAluminium GT 2.000mm Pitch Metric Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive. Use with GT2 or GT3 type belts.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
- After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.
- Use with GT2 or GT3 type belts.

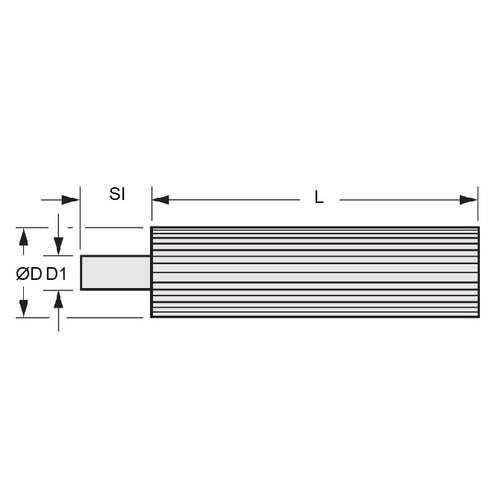

Product Data
- Number of Teeth : 45
- Min. Usable Length (L) 175.0 mm
- Pitch Diameter (PD) 28.70 mm
- Outside Diameter (OD) 28.10 mm
- Shank Diameter (D1) 13.00 mm
- Shank Length (Sl) 19.0 mm
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates® 45-2P-PS7A
- A6A50M045GT18
- 452PPS7A
