COL-04000-063-18-ZP - Datasheet
MBA
Category Information

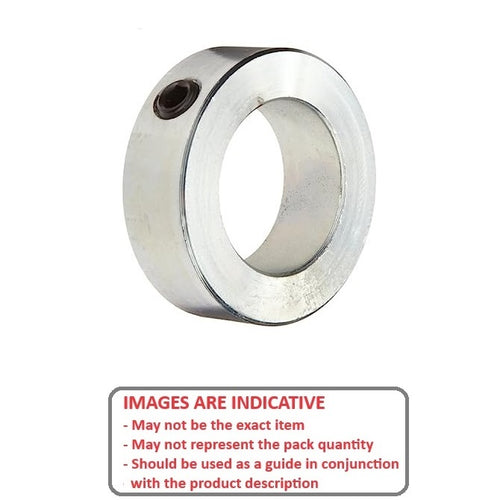

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Simple, ring-shaped component, typically made of metal or plastic, that fastens around a round shaft to hold other parts in place or to act as a mechanical stop.
- Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data

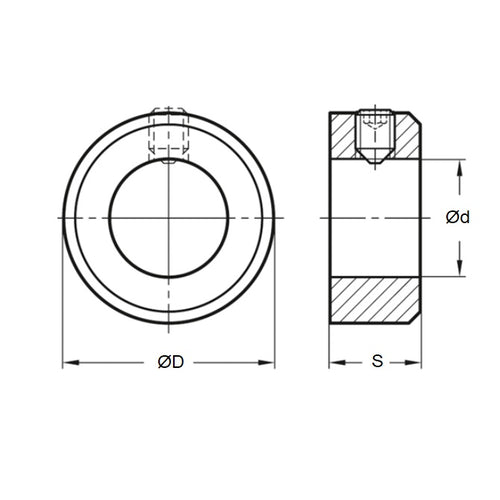

- Suitable Shaft Size (d) : 40.000 mm
- Outside Diameter (D) 63.00 mm
- Overall Width (S) 18.0 mm
- Screw Size M8
- Collar Style Standard
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- Huyett® SCM-040-ZC
- NoCor® SCM-040-ZC
- SCM040ZC
