CCI-04000-C - Datasheet
MBA
Category Information

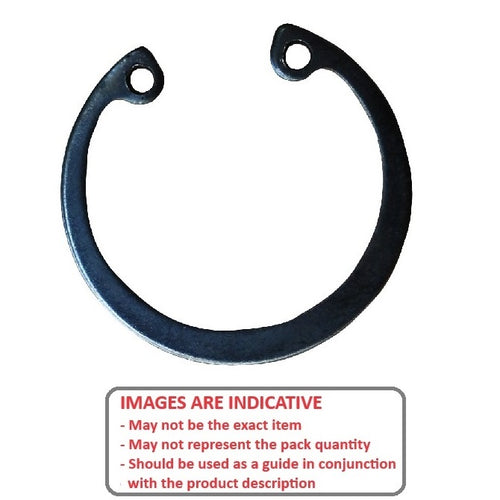

Retaining Rings - Internal - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
- Tolerances on request.
Product Data

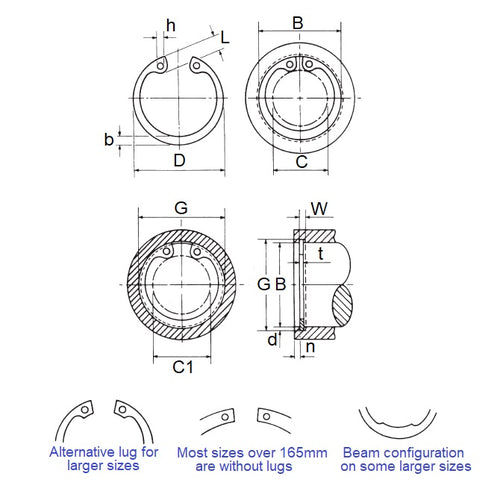

- Housing Bore (B)
:
40.00
mm
(Equiv. 1.575 in.) - Clip Thickness (T)
1.75
mm
+ 0.00 / - 0.06
(Equiv. 0.069 in.) - Groove Dia. (Dg)
42.50
mm
+ 0.25 / - 0.00
(Equiv. 1.673 in.) - Approx. Loose Circlip OD (Dr) 43.50 mm + 0.90 / - 0.39
- Groove Width (W) 1.85 mm + 0.10 / - 0.00
- Clearance in Bore (C) 27.80 mm
- Clearance in Groove (C1) 30.90 mm
- Min. Lug Diameter (h) 2.50 mm
- Min. Extension (n) 3.80
- Standard DIN472
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 472-040
- 98455A139
- Bossard® BN-822-040
- Waldes® D1300-040
- Huyett® DHO-040
- NoCor® DHO-040
- Rotor Clip® DHO-040
- Seeger® J-040
- Seeger® J40
- Seeger® J40-S
- Seeger® J40X1.75
- Seeger® NZT.J40
- DHO040
- D1300040
- D1300-0400APP
- D13000400APP
- 472040
- J040
- J40S
- BN822040
