Miniature Bearings Australia

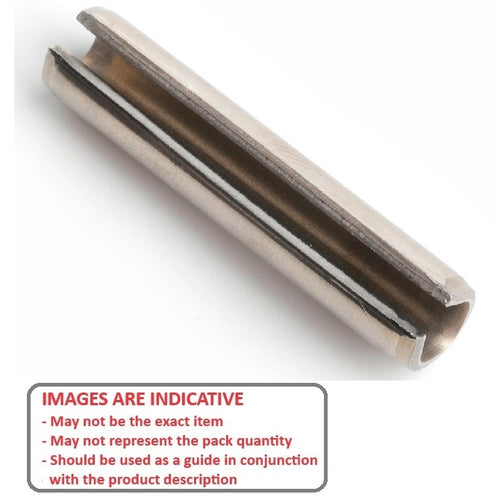

RP048-0318-420 - Datasheet
MBA
Category Information
Pins - Roll - Stainless Steel - 420 Grade420 Grade Stainless Steel Roll Pins. 420 grade stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 4.76 mm
- Length (L) 31.80 mm
- Free Diameter 5.24 mm
- Thickness (S) 1.02 mm
- Chamfer Length (cL) 0.28-1.40 mm
- Chamfer Diameter (cD) 4.6 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Stainless Steel AISI 420C Rc 46-52
Product Compliance and Data
Additional Resources
Cross References
- 92383A732
- Reid Tool® P-240
- NoCor® SPS420-187-1252-420SS
- Huyett® SPSP-187-1250
- NoCor® SPSP-187-1250
- NoCor® SPSP-187-1252-420SS
- SPSP1871250
- SPSP1871252420SS
- SPS4201871252420SS
- P240
- A9Y35-0640
- A9Y350640
