RP048-0238-420 - Datasheet

MBA

Category Information

Pins - Roll - Stainless Steel - 420 Grade

420 Grade Stainless Steel Roll Pins. 420 grade stainless DIN1481/ISO8752.

  • An expanded range may be available on special order. Please enquire.
  • Also known as sel-lok and bissell pins

Product Data

  • Nominal Diameter (D) : 4.76 mm
  • Length (L) 23.80 mm
  • Free Diameter 5.24 mm
  • Thickness (S) 1.02 mm
  • Chamfer Length (cL) 0.28-1.40 mm
  • Chamfer Diameter (cD) 4.6 mm
  • Standard DIN1481 / ISO8752
  • Type Standard
  • Material Stainless Steel AISI 420C Rc 46-52
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • NoCor® SPS420-187-0937-420SS
  • Huyett® SPSP-187-0937
  • NoCor® SPSP-187-0937
  • NoCor® SPSP-187-0937-420SS
  • SPSP1870937420SS
  • SPS4201870937420SS
  • A9Y350630
  • A9Y35-0630
View full details

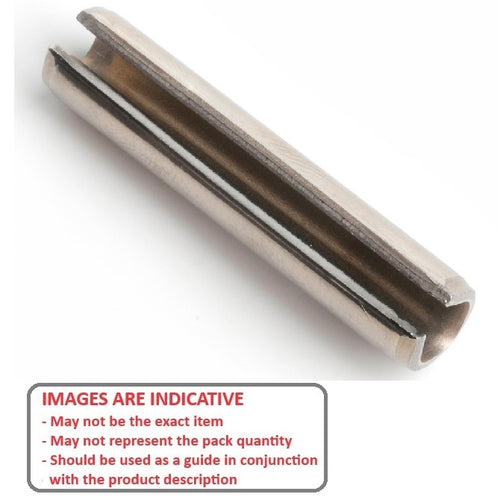

RP048-0238-420DiagramRP048-0238-420Image
