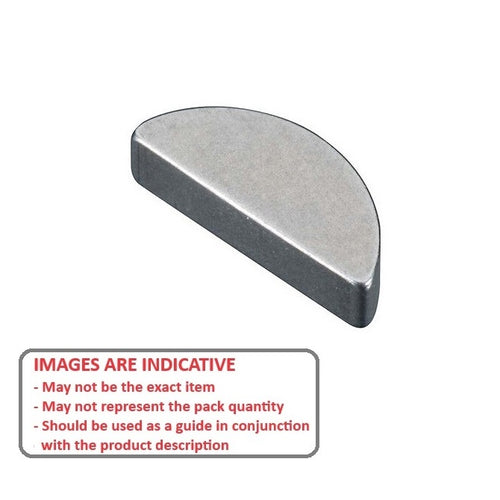

KW-048-094-217-S3 - Datasheet
ExaktKey
Category Information
Keys - Woodruff - 303 Stainless Steel303 Stainless Steel Woodruff Keys. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data
- Thickness (S)
:
4.76
mm
+/- 0.025
(Equiv. 0.187 in.) - Approx. Height (H)
9.4
mm
+/- 0.250
(Equiv. 0.37 in.) - Approx. Length (L) 21.74 mm
- Basis Diameter (D) 22.23 mm
- Material Stainless Steel 303 (Similar to A2 or 304 or 18-8)
Product Compliance and Data
Additional Resources
Cross References
- NoCor® 607SS
- ANSI 607-SS
- Key Size 11 Stainless
- Huyett® WKS-011
- NoCor® WKS011
- KW048222S3
