KW-048-078-185-CH - Datasheet
ExaktKey
Category Information

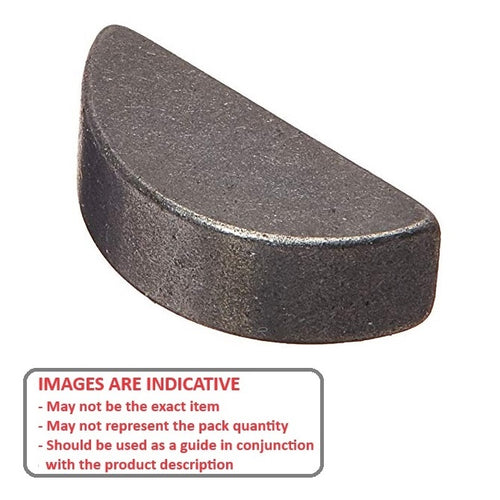

Keys - Woodruff - PlainPlain Woodruff Keys. Plain carbon steel
- An expanded range may be available on special order. Please enquire.
Product Data
- Thickness (S)
:
4.76
mm
+/- 0.025
(Equiv. 0.187 in.) - Approx. Height (H)
7.8
mm
+/- 0.250
(Equiv. 0.307 in.) - Approx. Length (L) 18.54 mm
- Basis Diameter (D) 19.05 mm
- Finish Plain
- Hardness HRC 40-50
- Material Carbon Steel C45 Hardened
Product Compliance and Data
Additional Resources
Cross References
- NoCor® 606H
- ANSI 606-H
- Key Size 9 Hardened
- Huyett® WKA-009
- NoCor® WKA009
- KW048191CH
