KW-048-078-185-S6 - Datasheet
ExaktKey
Category Information

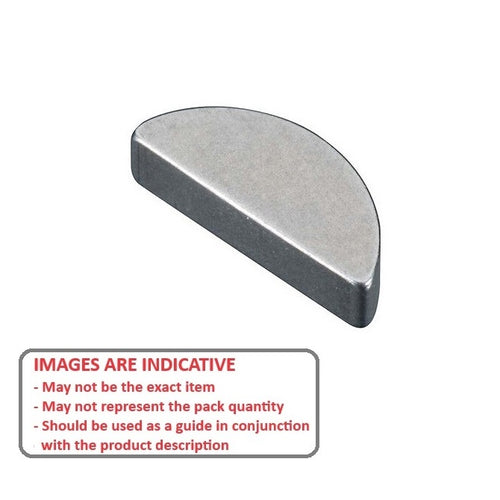

Keys - Woodruff - 316 Stainless Steel316 Stainless Steel Woodruff Keys. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data
- Thickness (S)
:
4.76
mm
+/- 0.025
(Equiv. 0.187 in.) - Approx. Height (H)
7.8
mm
+/- 0.250
(Equiv. 0.307 in.) - Approx. Length (L) 18.54 mm
- Basis Diameter (D) 19.05 mm
- Material Stainless Steel 316 (Similar to A4 or 18-10)
Product Compliance and Data
Additional Resources
Cross References
- ANSI 606-SS Marine
- 97940A125
- Key Size 9 Stainless Marine
- NoCor® WKS009
- KW048191S6
