KW-048-078-185-S3 - Datasheet
ExaktKey
Category Information

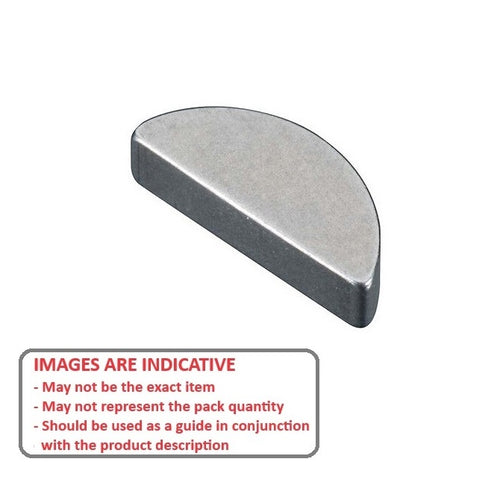

Keys - Woodruff - 303 Stainless Steel303 Stainless Steel Woodruff Keys. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data
- Thickness (S)
:
4.76
mm
+/- 0.025
(Equiv. 0.187 in.) - Approx. Height (H)
7.8
mm
+/- 0.250
(Equiv. 0.307 in.) - Approx. Length (L) 18.54 mm
- Basis Diameter (D) 19.05 mm
- Material Stainless Steel 303 (Similar to A2 or 304 or 18-8)
Product Compliance and Data
Additional Resources
Cross References
- NoCor® 606SS
- ANSI 606-SS
- NoCor® A9X490624
- Key Size 9 Stainless
- Huyett® WKS-009
- KW048191S3
- A9X49-0624
