SCT0476-016-PLS-P-PH-CZ - Datasheet

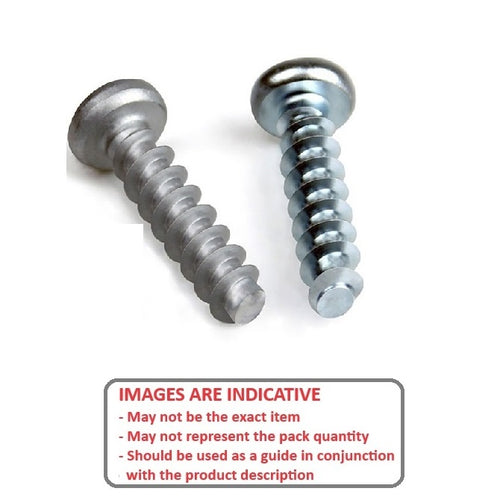

Name: 1055677 | SCT0476-016-PLS-P-PH-CZ (PK-10) --- Self Tapping Screws - 4.76x15.8 mm - 10 or 3/16 Soft Plastics - Zinc Plated Steel Screw
Rating: 5.0 (1 reviews)

MBA

Category Information

Screws - Self Tapping - Soft Plastics - Pan Head

Pan Head Soft Plastics Self Tapping Screws. Tri-Lobe Course Thread Plastic Threading Screws

Thread cutting screws for plastics
Be sure to select correct screw for hard or soft plastic threadcutting

Product Data

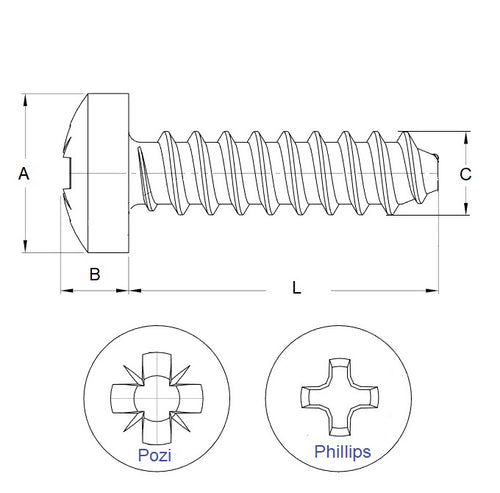

Approx Diameter : 4.76 mm
Thread Length (L) 15.8 mm
Gauge 10 or 3/16
Drive Type Phillips
Type Course Threadcutting For Soft Plastics
Material Zinc Plated Steel

Country of Origin: US

Product Compliance and Data

RoHs Statement
REACH Statement
CoC

Additional Resources

PDF Screws Catalogue
Washers
Nuts

Measuring Small Parts
Metalworking Resource Guide

Screws & Nuts Catalogue
Shoulder Screws Catalogue
Socket Set (Grub) Screws Catalogue
Thumb Screws & Thumb Nuts Catalogue
Thread Size Chart - Combined Imperial & Metric

Cross References

90385A244
MicroFast® LPP1010
