R166-2RB-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Chrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
Standard single row radial ball bearings.

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

ID (d) : 4.763 mm
O.D. (D) 9.525 mm
Width (B) 3.175 mm
Precision Grade Economy
Closure Type 2RB
Bearing Type Radial
Material Chrome Steel SAE 52100

Lubrication Type Grease
Lubrication Name Standard Unspecified
Basic Part R166
Limiting Speed 42750
Cage Type Standard
Static Load Rating KGf 26.6
Dynamic Load Rating KGf 68.4
Radii 0.10 mm
Inner Shoulder (UI) 5.95mm
Outer Shoulder (UO) 8.80 mm
Number of Balls 8
Clearance ECO (5 to 23)
Precision Grade ECO
Closure Type 2RB
Max Temperature 80 Deg. C

Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

RC Car Parts
RC Helicopter Parts
Cobra® - Nemesis - Bearing
Custom Works® - Enforcer GBX - Bearing
Custom Works® - Enforcer GSX - Bearing
Custom Works® - Intimidator - Bearing
Custom Works® - Intimidator GBX RC - Bearing
Custom Works® - Intimidator Nitro GSX - Bearing
Duratrax® - Evader Buggy - Bearing
Duratrax® - Evader BX - Bearing
Duratrax® - Evader BX Nitro - Bearing
Duratrax® - Evader BX Pro RTR Electric - Bearing
Duratrax® - Evader ST - Bearing
Duratrax® - Evader ST Nitro - Bearing
Duratrax® - Evader ST Pro RTR - Bearing
Duratrax® - Hyper-10 - Bearing
Duratrax® - RC10T Gas Conversion - Bearing
FSR - Bullet Electric - Bearing
FSR - Bullet Modified Losi - Bearing
HPI - RS4 Nitro Rush - Bearing
HPI - Rush Evo - Bearing
J Concepts - BJ4 - Bearing
Kyosho® - GP Ultima® RB RTR - Bearing
Kyosho® - Ultima® ST EP Sports - Bearing
Kyosho® - Ultima® ST GP Evolution Type R - Bearing
Kyosho® - Ultima® ST GP Sports - Bearing
Kyosho® - Ultima® ST Truck - Bearing
Kyosho® - Ultima® ST Truck With Steering - Bearing
Mugen® - MST-1 1/10 Gas Truck With Clutch - Bearing
Sport Werks® - Raven ST - Bearing
Team Associated® - B4 Factory Team - Bearing
Team Associated® - B4 RTR - Bearing
Team Associated® - B4 SE Electric Off Road - Bearing
Team Associated® - B4 Stealth Buggy - Bearing
Team Associated® - Nitro TC3 - Bearing
Team Associated® - Nitro TC3 RTR - Bearing
Team Associated® - Nitro TC3 RTR Plus On Road - Bearing
Team Associated® - Nitro TC3 With Steering - Bearing
Team Associated® - RC10 - T3 1/10 - Front Wheel Bearing 3-16-3-8mm
Team Associated® - RC10 Championship Edition - Bearing
Team Associated® - RC10 Championship Edition With STE - Bearing
Team Associated® - RC10 Team Car - Bearing
Team Associated® - RC10 World Car - Bearing
Team Associated® - RC10B2 - Bearing
Team Associated® - RC10B3 - Bearing
Team Associated® - RC10B3 Sport - Bearing
Team Associated® - RC10B4 - Bearing
Team Associated® - RC10DS - Bearing
Team Associated® - RC10GT Factory Team Nitro Off Road - Bearing
Team Associated® - RC10GT Factory Team With Clutch Bell - Bearing
Team Associated® - RC10GT Old Nitro Off Road - Bearing
Team Associated® - RC10GT RTR - Bearing
Team Associated® - RC10GT RTR With Clutch Bell - Bearing
Team Associated® - RC10GT/ST Team Truck - Bearing
Team Associated® - RC10T Truck - Bearing
Team Associated® - RC10T2 Sport - Bearing
Team Associated® - RC10T2 Truck - Bearing
Team Losi® - DoubleX Buggy - Bearing
Team Losi® - DoubleX Truck - Bearing
Team Losi® - GTX Gas TRK - Bearing
Team Losi® - JR T Trans - Bearing
Team Losi® - JRX2 - Bearing
Team Losi® - JRX-S 4 Wheel Sedan - Bearing
Team Losi® - JRXT Truck - Bearing
Team Losi® - LX-T - Bearing
Team Losi® - NXT - Bearing
Team Losi® - Rally Street Weapon - Bearing
Team Losi® - Street Weapon - Bearing
Team Losi® - XXX-2WD Off-Road Racing Buggy - Bearing
Team Losi® - XXX4 - Bearing
Team Losi® - XXX-BK2 Racer - Bearing
Team Losi® - XXX-Buggy - Bearing
Team Losi® - XXX-Kinwald Graphite Edition - Bearing
Team Losi® - XXX-NT AD Version - Bearing
Team Losi® - XXX-NT Sport - Bearing
Team Losi® - XXX-S - Bearing
Team Losi® - XXX-T MF2 Sports - Bearing
Trinity® - Reflex 10 - Bearing
XTM Racing - Nitro X-Cellerator Racer - Bearing
XTM Racing - Nitro X-Cellerator RTR 2WD - Bearing
XTM Racing - X-Cellerator Stadium Truck RTR - Bearing
XTM Racing - X-Cellerator EP RTR - Bearing

Cross References

Sealed R166 / 3
R166 Basic Size Ref

View full details

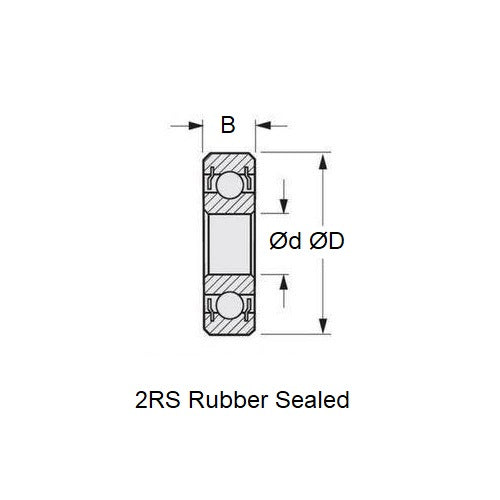

R166-2RB-ECODiagram

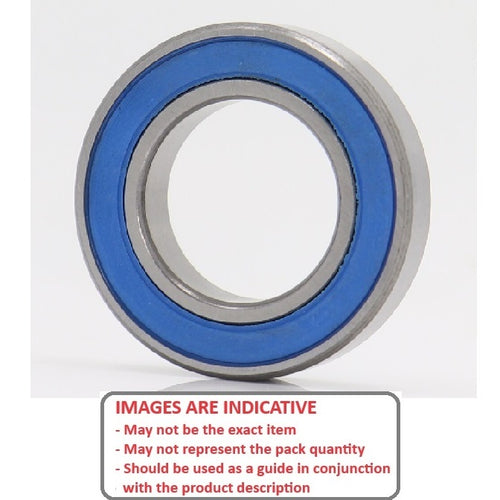

R166-2RB-ECOImage
