GHK0476-0476-051 - Datasheet
ExaktKey
Category Information

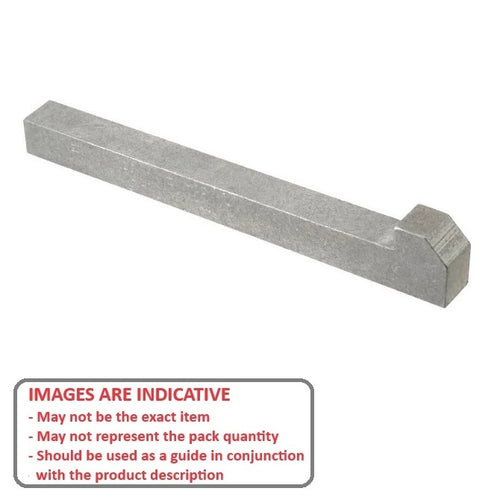

Keys - Gib Head - SteelSteel Gib Head Keys. Tapered 3.000 mm per 300 mm (1:100)
- An expanded range may be available on special order. Please enquire.

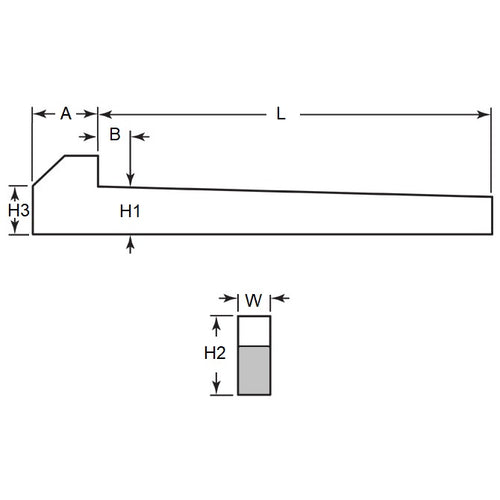

Product Data
- Nominal Key Height (H1) : 4.763 mm
- Width (W) 4.763 mm
- Length (L) 50.8 mm
- Head Height (h2) Approx. 7.9 mm
- Approx (B) 5.08
- Approx (H3) 5.56
- Taper 1:100
- Standard BS46
- Head Length (Approx) (A) 6.35 mm
- Material Cold Finished Steel
Product Compliance and Data
Additional Resources
Cross References
- 98471A118
- Huyett® GIB-0187-2000
- NoCor® GIB-0187-2000
- GIB01872000
