REF-048-L-CB - Datasheet
MBA
Category Information
Rod Ends - Female - Steel - Plain - Bronze LinedBronze Lined Plain Steel Female Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.

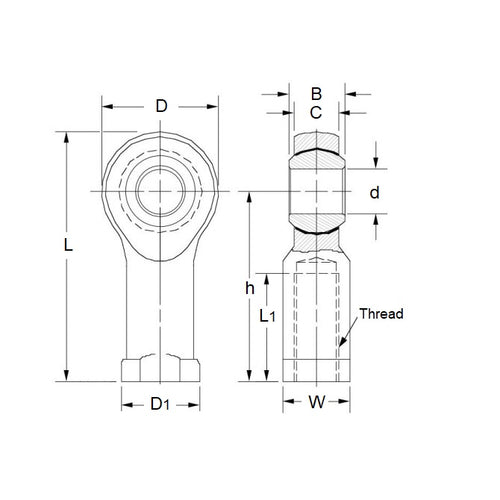

Product Data
- Eye Size : 4.763 mm
- Overall Length 34.93 mm
- Thread Size 10-32 UNF Left
- Thread Length 14.27 mm
- Head Width 6.35 mm
- Eye Width 7.92 mm
- Head Diameter 15.88 mm
- Centre Height 26.97 mm
- Grease Nipple Yes
- Body Width / Flange Width 7.92 / 10.31 mm
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- 6072K144-LEFT
- ASAHI® JAFB3L
- KWK KFB3L
- IKO PHSB3L
- Nachi® PHSB-3L
- NTN® SFI-B3L
- SFIB3L
- 6072K144LEFT
