THS028C-025-K-3-P - Datasheet

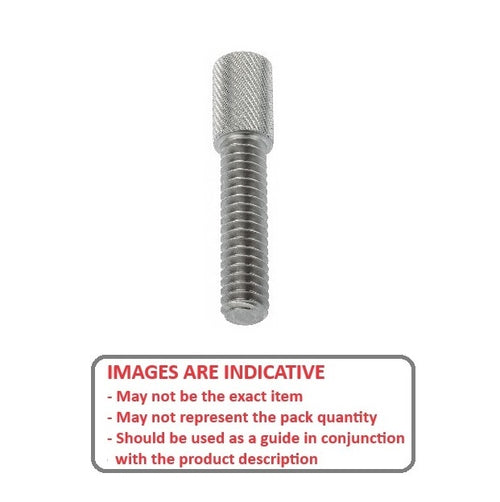

Name: 1042157 | THS028C-025-K-3-P (Each) --- Thumb Screws - 4-40 UNC - 2.85mm - 25.4x34.93 mm Knurled - Stainless Steel 303/304 Similar to A2 or 18-8 HRB80 Screw
Rating: 5.0 (1 reviews)

MBA

Category Information

Screws - Thumb - Knurled - Stainless - Precision Head

Precision Head Stainless Knurled Thumb Screws. This is the main category in this series

An expanded range may be available on special order. Please enquire.

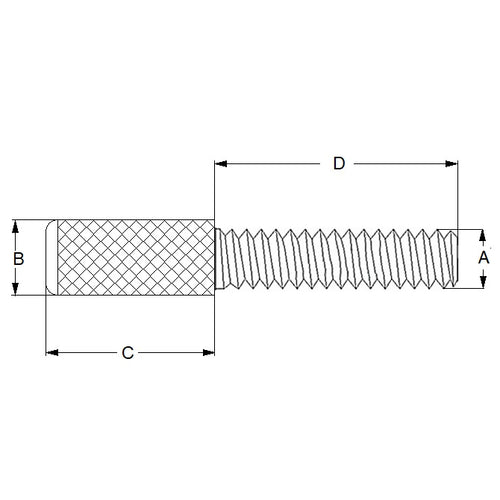

Product Data

Thread Size (A) : 4-40 UNC (2.85mm)
Thread Length (D) 25.40 mm
Overall Length (C+D) 34.93 mm
Head Diameter (B) 4.76 mm
Head Type Knurled
Material Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80

Country of Origin: US

Product Compliance and Data

RoHs Statement
REACH Statement
CoC

Additional Resources

Thumb Screws and Nuts PDF Quick Guide
PDF Screws Catalogue
Nuts

Measuring Small Parts
Metalworking Resource Guide

Screws & Nuts Catalogue
Shoulder Screws Catalogue
Socket Set (Grub) Screws Catalogue
Thumb Screws & Thumb Nuts Catalogue
Thread Size Chart - Combined Imperial & Metric

Cross References

91746A118
Reid Tool® KTS-4118
KTS4118
