NT028C-HX-S4 - Datasheet
Brighton Best
Category Information
Nuts - Hexagonal - Full - Stainless SteelStainless Steel Full Hexagonal Nuts. UNC - UNF - BA - METRIC - BSW - Course - Fine - Extra Fine.
- An expanded range may be available on special order. Please enquire.

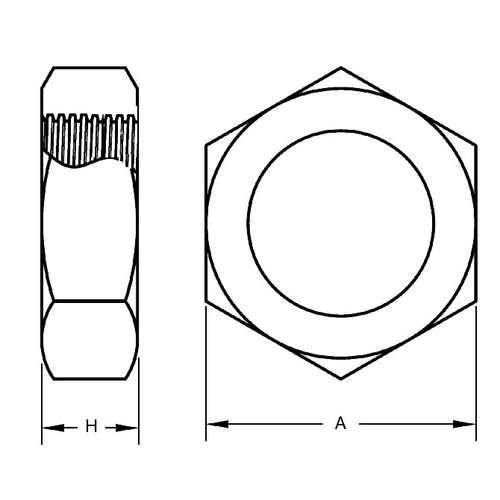

- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data

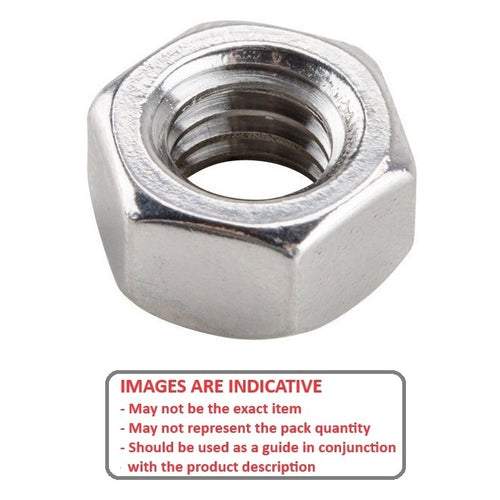

304 stainless steel nut
- Thread Size : 4-40 UNC (2.85mm)
- Thickness (H) 2.5 mm
- Across Flats (A/F) 6.35 mm
- Type Standard
- Pitch 0.635 mm
- Threads Per Inch 40 TPI
- Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80
Product Compliance and Data
Additional Resources
Applications & Uses
- RC Car Parts
- Team Associated® - RC10 - T3 1/10 - 4-40 Plain Nuts
Cross References
- 91841A005
- A9X18-440
- A9X18440
