REM-040-R-CB - Datasheet
MBA
Category Information

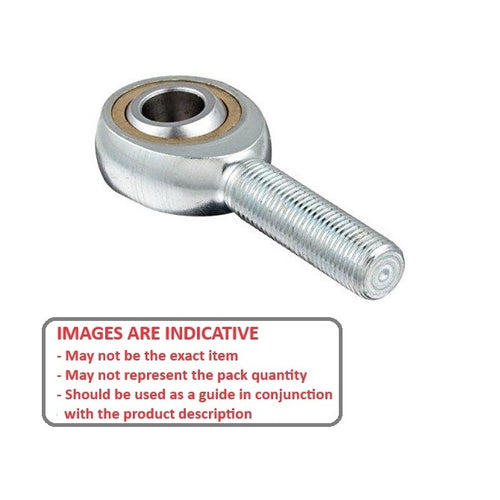

Rod Ends - Male - Steel - Bronze Lined - StandardStandard Bronze Lined Steel Male Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data

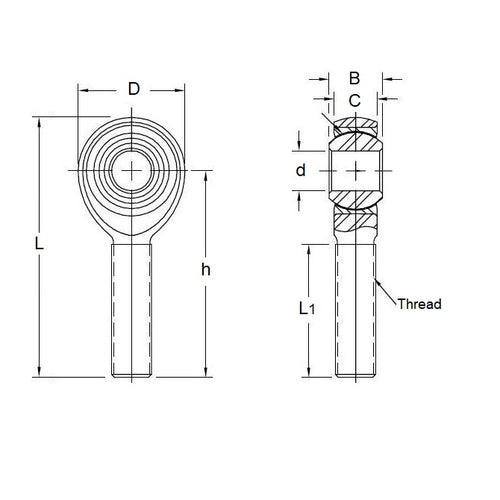

- Eye Size (d1) : 4.00 mm
- Overall Length (L) 37.00 mm
- Thread Size M4x0.7 Right
- Min. Thread Length (l2) 17.00 mm
- Head Width (W) 5.30 mm
- Eye Width (W1) 7.00 mm
- Head Diameter (D) 14.00 mm
- Centre Height (l1) 30.00 mm
- Grease Nipple No
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- IKO POS4
- Nachi® POS-4
