W0042-CU-013-029-NY - Datasheet
MBA
Category Information

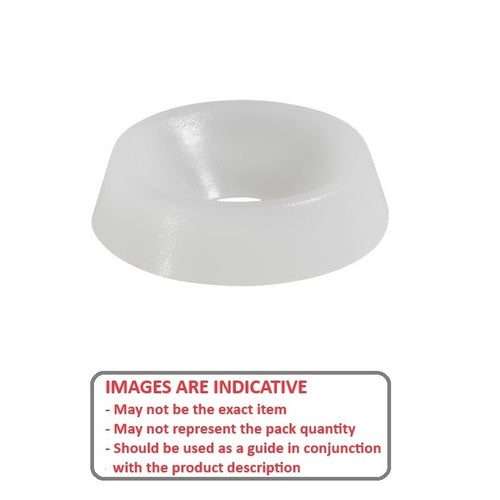

Washers - Cup - NylonNylon Cup Washers. Nylon cup washer selection.
- Washers with a concave, cup-like shape, used with countersunk screws to provide a neat, finished look and evenly distribute the fastener's load.
- Protects softer materials from damage caused by the fastener head.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

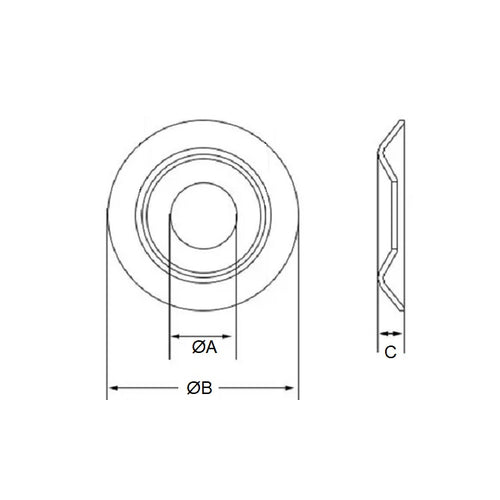

- Nominal Inside Diameter (A) : 4.17 mm
- Nominal Outside Diameter (B) 13.10 mm
- Nom. Section (C) 2.90 mm
- Suits Screw Size 8 UNC / UNF
- Shoulder Angle 82 °
- Actual ID (Ref) 4.4 mm
- Material Nylon (Zytel 101)
Product Compliance and Data
Additional Resources
Cross References
- 95481A032
- A 9M69-1611
- A9M69-1611
- A9M691611
