W0042-SH-010-025-N - Datasheet
MBA
Category Information

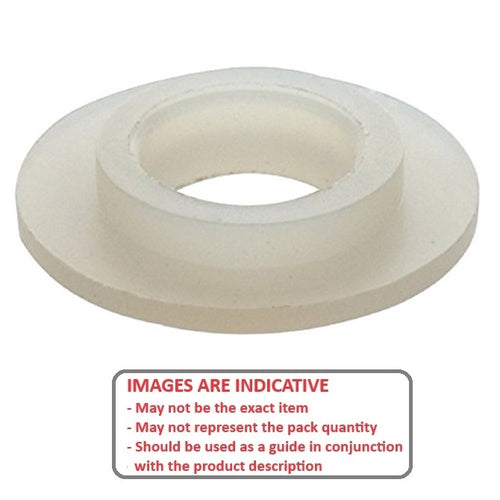

Washers - Shoulder - NylonNylon Shoulder Washers. This is the main category in this series.
- Shoulder washers are used to insulate fasteners, wires or shafts from moisture and electricity.
- Also known as an insulator or top hat washers. All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

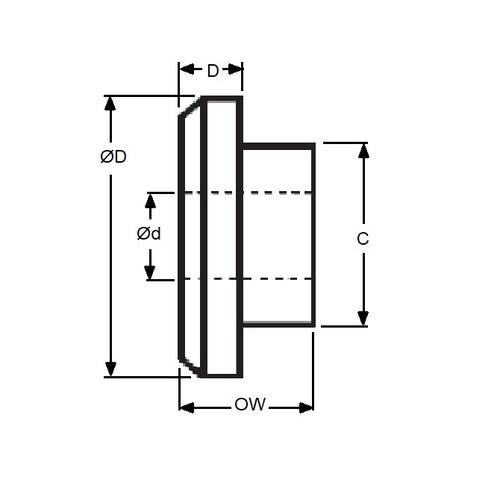

- Nominal Inside Diameter : 4.166 mm
- Outside Diameter (OD) 9.525 mm
- Overall Width 2.54 mm
- Flange Thickness (D) 1.27 mm
- Shoulder Diameter (C) 6.35 mm
- Screw Size 8 (UNC/UNF)
- Material Nylon (Zytel 101)
Product Compliance and Data
Additional Resources
Cross References
- A 9M68-1205
- A9M681205
- A9M68-1205
