COL-00300-007-05-CC - Datasheet
MBA
Category Information

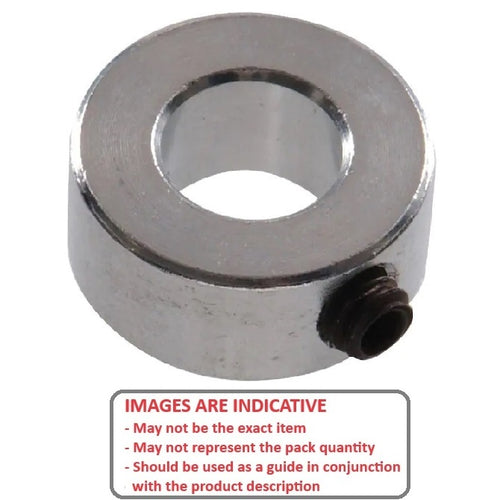

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Simple, ring-shaped component, typically made of metal or plastic, that fastens around a round shaft to hold other parts in place or to act as a mechanical stop.
- Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data

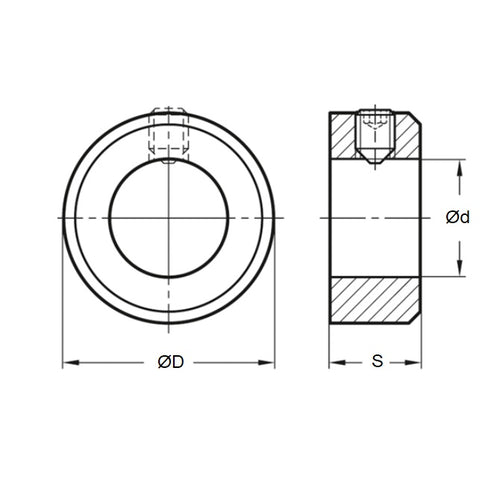

- Suitable Shaft Size (d)
:
3.000
mm
+ 0.014 / - 0.000
(Equiv. 0.118 in.) - Outside Diameter (D) 7.00 mm
- Overall Width (S) 5.0 mm
- Collar Style Plain Collar
- Material Steel or Cadmium Plated
Product Compliance and Data
Additional Resources
Cross References
- Huyett® SCM-003-BO
- NoCor® SCM-003-BO
- SCM003BO
- A7C2M107030
