683A-ZZ-MC3 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

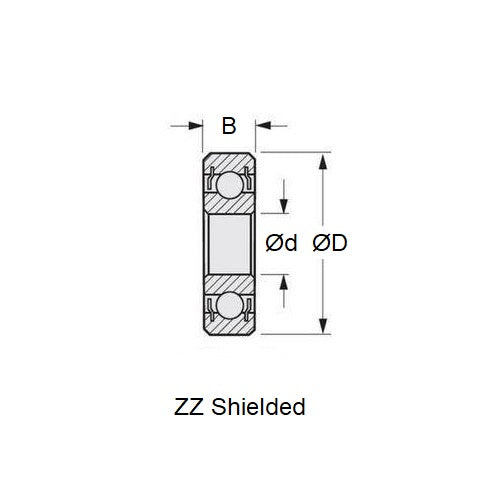

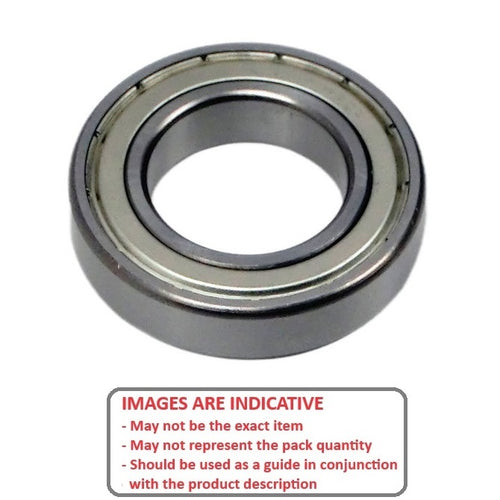

Double shielded standard bearing
- ID (d)
:
3.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.118 in.) - O.D. (D)
7.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.276 in.) - Width (B)
3.000
mm
+ 0.000 / - 0.125
(Equiv. 0.118 in.) - Precision Grade Abec 1
- Closure Type ZZ
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 683A
- Limiting Speed 63000
- Cage Type Standard
- Static Load Rating KGf 11
- Dynamic Load Rating KGf 32
- Radii 0.10 mm
- Inner Shoulder (UI) 3.85mm
- Outer Shoulder (UO) 6.35 mm
- Number of Balls 8
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- RC Helicopter Parts
- Duratrax® - MT Pro - Bearing
- Duratrax® - ST Pro - Bearing
- Robitronics® - Scalpel Pro 1/8 - Bearing
- Tamiya® - 911 GTI 1-8 Gas - Bearing
- Tamiya® - Astute - Bearing
- Tamiya® - F Pro - Bearing
- Tamiya® - Honda - Bearing
- Tamiya® - Honda 99T - Bearing
- Tamiya® - Lotus - Bearing
- Tamiya® - Merceded 1/8 Gas - Bearing
- Tamiya® - TA03R - Front Countershaft MA18 Bearing 3-7-3mm
- Tamiya® - TAO-3 Series - Bearing
- Tamiya® - TAO4 Complete - Bearing
- Tamiya® - TAO4 Upgrade - Bearing
- Tamiya® - TOA-3R Series - Bearing
- Tamiya® - Williams - Bearing
- Tamiya® - Williams Honda Lotus Honda 99T - Bearing
- Traxxas® - Fiero - Bearing
- Align® - Trex 600 CF - Bearing
- Bergen Machine® - Intrepid Gas - Bearing
- Century® - Falcon 46 - Bearing
- Century® - Falcon 46 Upgrade Kit - Bearing
- Century® - Falcon 46/50 SE II - Bearing
- Century® - Hawk II - Bearing
- Century® - Hawk II Upgrade Kit - Bearing
- Century® - Hawk Sport All - Bearing
- Century® - Hawk Sport Upgrade Only - Bearing
- Century® - Phoenix 52-4-C - Bearing
- Century® - Phoenix 52-4-C Upgrade Kit - Bearing
- Century® - Predator 60 SE - Bearing
- Century® - Predator 60/70 - Bearing
- Century® - Predator Gas SE Complete - Bearing
- Century® - Predator Gasser Complete - Bearing
- Century® - Predator Max 90 - Bearing
- Century® - Raven 30-50 - Bearing
- Hirobo® - Seadu 30 Evolution - Bearing
- Hirobo® - Seadu 50 Evolution - Bearing
- Hirobo® - Shuttle Challenge Upgrade Kit - Bearing
- Hirobo® - Shuttle Plus - Replacement Bearing
- Hirobo® - Shuttle ZTS Upgrade Kit - Bearing
- Hirobo® - Shuttle ZXX - Bearing
- Hirobo® - ZTS Upgrade Kit - Bearing
- Ikarus® - ECO - Bearing
- Ikarus® - ECO 8 Electric Heli - Bearing
- Ikarus® - ECO 8 Electric Heli Full Kit With ALU - Bearing
- Ikarus® - ECO Piccolo - Bearing
- Ikarus® - ECO Piccolo V2 - Bearing
- Ikarus® - Piccolo Pro - Bearing
- Kyosho® - CALIBER 30 - Bearing
- Mikado® - Logo 14 - Bearing
- Mikado® - Logo 14 Carbon - Bearing
- Mikado® - Logo 20 - Bearing
- Miniature Aircraft® - Fury - Bearing
- Miniature Aircraft® - X-Cell 30-40 - Replacement Bearing
- Miniature Aircraft® - X-Cell 30-40 All - Bearing
- Miniature Aircraft® - X-Cell 30-40 Upgrade Kit - Bearing
- Miniature Aircraft® - X-Cell 50-60 - Replacement Bearing
- Miniature Aircraft® - X-Cell 50-60 All - Bearing
- Miniature Aircraft® - X-Cell30-40 Upgrade Kit New - Bearing
- Synergy® - N9 - Bearing
Cross References
- Miniature Aircraft 0725 and 0159 (16 each)
- HIROBO 2500-086
- SKF 638-3-2Z
- WIB 638-3-2Z
- WIB 638-3-Z
- Shielded Width A 683/3
- GRW 683-2Z
- Shielded 683A / 3
- NTN® 683-ZZ
- NTN® 683-ZZA
- TAMIYA® 730
- ADR AX3-ZZ
- MPB UL30CHH
- NTN® W683-ZZA
- 2500086
- L730ZZ
- L730-ZZ
- W683ZZA
- 6383Z
- 63832Z
- 6832Z
- 683SS
- 683AZZMC3
- 683A-ZZMC3
- AX3ZZ
- 683A Basic Size Ref
