SFMR63A-ZZ-MC3 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Flanged - Precision - 440C Stainless440C Stainless Precision Flanged Single Row Ball Bearings. Stainless Steel Bearings with Flanges.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with flanges.
- Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.
Product Data

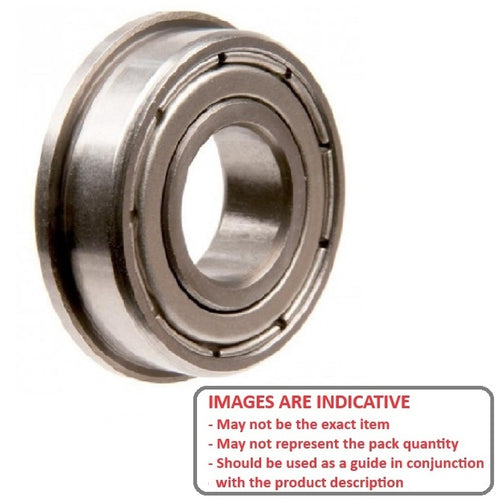

Double shielded flanged stainless steel bearing

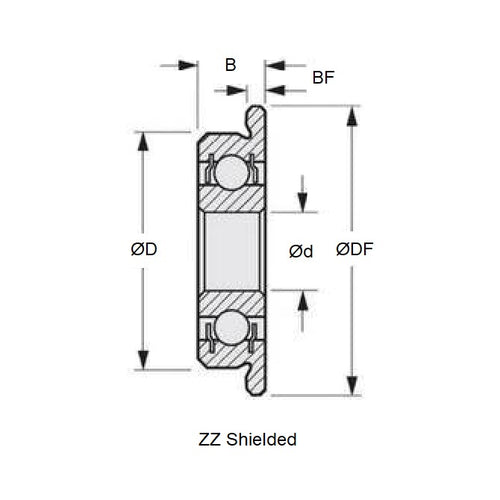

- ID (d)
:
3.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.118 in.) - O.D. (D)
6.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.236 in.) - Width (B)
2.500
mm
+ 0.000 / - 0.125
(Equiv. 0.098 in.) - Flange Diameter (DF) 7.200 mm
- Flange Width (BF) 0.600 mm
- Precision Grade Abec 1
- Closure Type ZZ
- Bearing Type Radial Flanged
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part FMR63A
- Limiting Speed 71000
- Cage Type Crown
- Static Load Rating KGf 7.5
- Dynamic Load Rating KGf 21
- Radii 0.10 mm
- Inner Shoulder (UI) 3.70mm
- Outer Shoulder (UO) 5.40 mm
- Number of Balls 8
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Helicopter Parts
- Bergen Machine® - Intrepid Gas - Replacement Bearing
- Century® - Falcon 46/50 SE II - Replacement Bearing
- Century® - Ninja Pro® 30/46 All - Replacement Bearing
- Century® - Ninja Pro® 30/46Upgrade Kit - Replacement Bearing
- Century® - Ninja Pro® 30-46 - Replacement Bearing
- Century® - Pro Master Upgrade - Replacement Bearing
- GMP - Cobra - 5191 Replacement Bearing
- GMP - Competition - 5191 Replacement Bearing
- GMP - Cricket - 5191 Replacement Bearing
- GMP - Elite Rotor Head - 5191 Replacement Bearing
- GMP - Legend - 5191 Replacement Bearing
- GMP - Rebel - 5191 Replacement Bearing
- GMP - Stork - 5191 Replacement Bearing
- Hirobo® - Lepton EX - Replacement Bearing
- Hirobo® - Shuttle - Upgrade Kit Replacement Bearing
- Hirobo® - Shuttle Challenge Upgrade Kit - Replacement Bearing
- Hirobo® - Shuttle Plus - Replacement Bearing
- Hirobo® - Shuttle XX - 2500-057 Replacement Bearing
- Hirobo® - Shuttle XX - Replacement Bearing
- Hirobo® - Shuttle Z - 2500-057 Replacement Bearing
- Hirobo® - Shuttle Z - Replacement Bearing
- Hirobo® - Shuttle ZTS Upgrade Kit - Replacement Bearing
- Hirobo® - Shuttle ZX - 2500-057 Replacement Bearing
- Hirobo® - Shuttle ZX - Replacement Bearing
- Hirobo® - Shuttle ZX-0402 Upgrade Kit - Replacement Bearing
- Hirobo® - Shuttle ZXX - 2500-057 Replacement Bearing
- Hirobo® - Shuttle ZXX - Replacement Bearing
- Hirobo® - ZTS Upgrade Kit - Replacement Bearing
- JR - Ergo 30/46 - Replacement Bearing
- JR - Ergo 30/46 Complete Kit - Replacement Bearing
- Kalt® - Cyclone - Replacement Bearing
- Kyosho® - NEXUS 30 - Replacement Bearing
- MS Composit - Hornet Micro Heli - Replacement Bearing
Cross References
- 57155K538
- Similar Part FLW673A
- NTN® FLW673-ZZA
- Stainless FMR63AZZMC3
- Stainless FMR63A-ZZ-MC3
- SSMF63ZZ
- SSFMR63AZZMC3
- SSMF63-ZZ
- SSFMR63A-ZZMC3
- SSLF630-ZZ
- SS-LF630-ZZ
- SSLF630ZZ
- DDLF630-ZZ
- DDLF630ZZ
- DD-LF630-ZZ
- FMR63A-Z-MC3
- FMR63AZMC3
- FLW673ZZA
- FMR63A Basic Size Ref
