Miniature Bearings Australia
RP030-0220-4 - Datasheet
MBA
Category Information

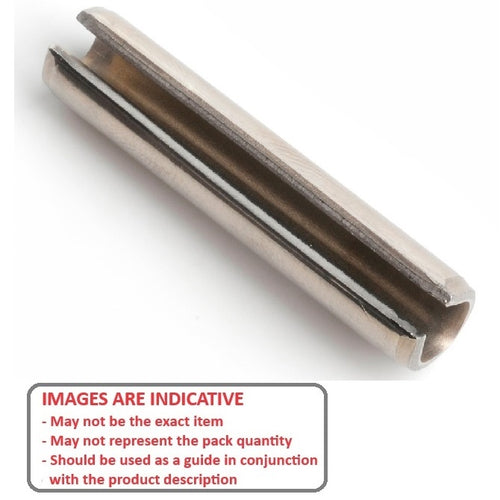

Pins - Roll - Stainless Steel - 300 Grade300 Grade Stainless Steel Roll Pins. 300 Grade Stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 3.00 mm
- Length (L) 22.00 mm
- Free Diameter 3.30 mm
- Thickness (S) 0.60 mm
- Chamfer Length (cL) 0.50-0.70 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 91610A413
- Huyett® SPM3P-030-022-I
- NoCor® SPM3P-030-022-I
- NoCor® SPMS-030-022-304SS
- SRP322
- SRP3-22
- SPM3P030022I
- SPMS030022304SS
