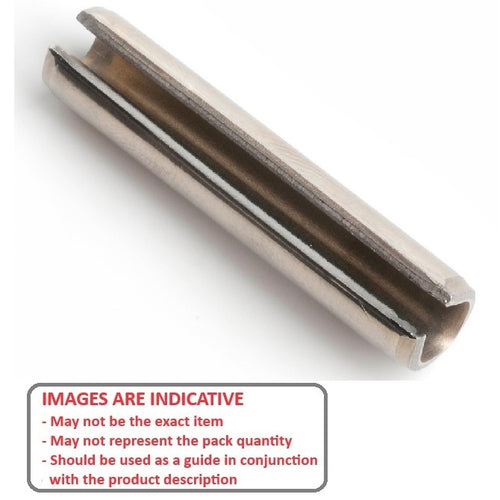

RP030-0200-4 - Datasheet
MBA
Category Information
Pins - Roll - Stainless Steel - 300 Grade300 Grade Stainless Steel Roll Pins. 300 Grade Stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 3.00 mm
- Length (L) 20.00 mm
- Free Diameter 3.30 mm
- Thickness (S) 0.60 mm
- Chamfer Length (cL) 0.50-0.70 mm
- Standard ASME B18.8.4M Type B
- Type Standard
- Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 91610A410
- Huyett® SPM3P-030-020-A
- NoCor® SPM3P-030-020-I
- NoCor® SPMS-030-020-304SS
- SRP3-20
- SRP320
- SPMS030020304SS
- SPM3P030020I
