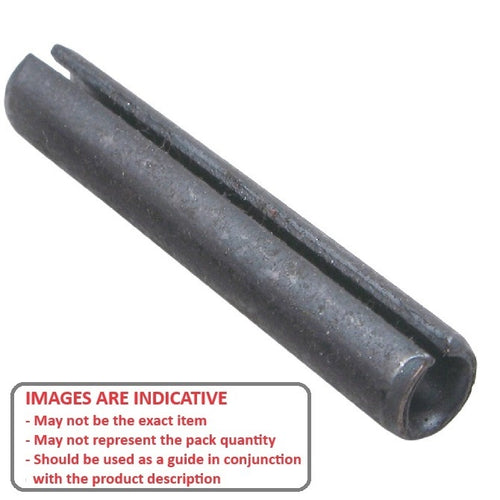

RP030-0120-C - Datasheet
MBA
Category Information
Pins - Roll - Carbon SteelCarbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 3.00 mm
- Length (L) 12.00 mm
- Free Diameter 3.30 mm
- Thickness (S) 0.60 mm
- Chamfer Length (cL) 0.50-0.70 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® 802108
- 91611A155
- NoCor® SPM-030-012
- Huyett® SPM-030-012-I
- NoCor® SPM-030-012-I
- NoCor® SPMP-030-012
- Brighton Best® Spring-Pin-M3x12
- SAP312
- SAP3-12
- SpringPinM3x12
- MD1481MQB030X012
- SPMP030012
- SPM030012
- SPM030012I
