623-ZZS-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

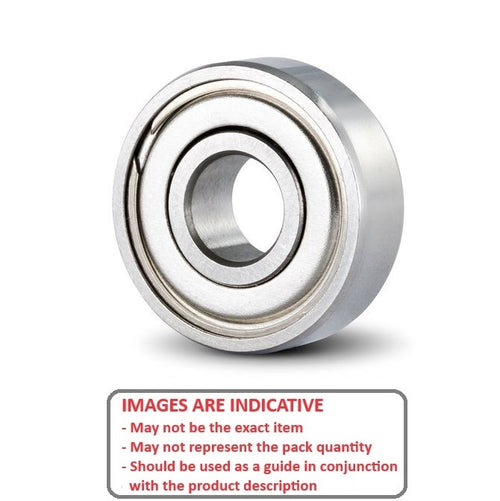

Double shielded economy bearing
- ID (d) : 3.000 mm
- O.D. (D) 10.000 mm
- Width (B) 4.000 mm
- Precision Grade Economy
- Closure Type ZZS
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 623
- Limiting Speed 47500
- Cage Type Standard
- Static Load Rating KGf 20.9
- Dynamic Load Rating KGf 60.8
- Radii 0.15 mm
- Inner Shoulder (UI) 4.35mm
- Outer Shoulder (UO) 7.98 mm
- Number of Balls 7
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type ZZS
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Helicopter Parts
- Align® - Trex 600 CF - Bearing
- Bergen Machine® - Intrepid 60 - Bearing
- Bergen Machine® - Intrepid Gas - Bearing
- Century® - Falcon 46 - Bearing
- Century® - Falcon 46 Upgrade Kit - Bearing
- Century® - Hawk II - Bearing
- Century® - Hawk II Upgrade Kit - Bearing
- Century® - Hawk Sport All - Bearing
- Century® - Hawk Sport Upgrade Only - Bearing
- Century® - Phoenix 52-4-C - Bearing
- Century® - Phoenix 52-4-C Upgrade Kit - Bearing
- JR - 30 - Replacement Bearing
- JR - Ergo 30/46 Complete Kit - Bearing
- JR - Ergo 30/46 Upgrade Kit - Bearing
- Kalt® - B28-30 - Bearing
- Kalt® - Cyclone - Bearing
- Kalt® - Cyclone II - Bearing
- Mikado® - Logo 10 - Bearing
- Mikado® - Logo 10 3D Version - Bearing
- Mikado® - Logo 20 - Bearing
- Miniature Aircraft® - Fury - Bearing
- Miniature Aircraft® - X-Cell 30-40 - Bearing
- Miniature Aircraft® - X-Cell 30-40 - Replacement Bearing
- Miniature Aircraft® - X-Cell 30-40 All - Bearing
- Miniature Aircraft® - X-Cell 30-40 Upgrade Kit - Bearing
- Miniature Aircraft® - X-Cell 50-60 - Bearing
- Miniature Aircraft® - X-Cell 50-60 - Replacement Bearing
- Miniature Aircraft® - X-Cell 50-60 All - Bearing
- Miniature Aircraft® - X-Cell30-40 Upgrade Kit New - Bearing
- Schluter® - Champion - Bearing
- Schluter® - Champion - Replacement Bearing
- Schluter® - Champion II - Replacement Bearing
- Schluter® - Futura - Replacement Bearing
- Schluter® - Hellstar - Bearing
- Schluter® - Junior - Bearing
- Schluter® - Junior - Replacement Bearing
- Schluter® - Junior 50 - Bearing
- Schluter® - Junior 50 - Replacement Bearing
- Schluter® - Magic - Bearing
- Schluter® - Millenium 60 Upgrade Kit - Bearing
- Schluter® - Miniboy - Bearing
- Schluter® - Scout - Replacement Bearing
- Schluter® - Scout II - Replacement Bearing
- Schluter® - Superior - Bearing
- TSK - Miscellaneous Parts - Replacement Bearing
Cross References
- Miniature Aircraft 0301
- Schluter® 0316
- Schluter® 0364
- Miniature Aircraft 0455
- BSD BGB-6230
- Misumi® C-E623ZZ
- BGB6230
- CE623ZZ
- 623 Basic Size Ref
