RP030-0100-C - Datasheet
MBA
Category Information

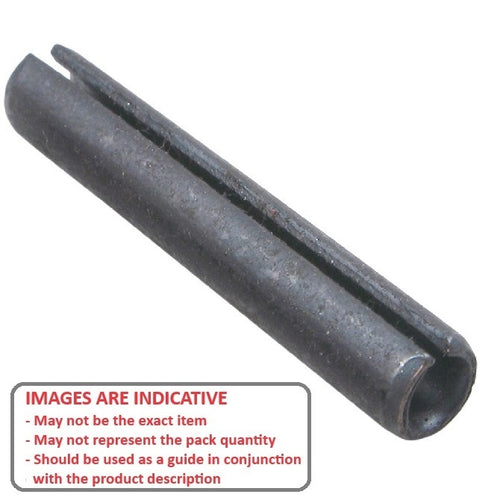

Pins - Roll - Carbon SteelCarbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 3.00 mm
- Length (L) 10.00 mm
- Free Diameter 3.30 mm
- Thickness (S) 0.60 mm
- Chamfer Length (cL) 0.50-0.70 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® 802105
- 91611A154
- NoCor® SPM-030-010
- Huyett® SPM-030-010-I
- NoCor® SPM-030-010-I
- NoCor® SPMP-030-010
- Brighton Best® Spring-Pin-M3x10
- SAP3-10
- SAP310
- SpringPinM3x10
- MD1481MQB030X010
- SPM030010
- SPM030010I
- SPMP030010
