RP030-0100-4 - Datasheet

MBA

Category Information

Pins - Roll - Stainless Steel - 300 Grade

300 Grade Stainless Steel Roll Pins. 300 Grade Stainless DIN1481/ISO8752.

  • An expanded range may be available on special order. Please enquire.
  • Also known as sel-lok and bissell pins

Product Data

  • Nominal Diameter (D) : 3.00 mm
  • Length (L) 10.00 mm
  • Free Diameter 3.30 mm
  • Thickness (S) 0.60 mm
  • Chamfer Length (cL) 0.50-0.70 mm
  • Standard DIN1481 / ISO8752
  • Type Standard
  • Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80
Country of Origin: DE

Product Compliance and Data

Additional Resources

Cross References

  • 91610A405
  • NoCor® SPMS-030-010-304SS
  • SRP3-10
  • SRP310
  • SPMS030010304SS
View full details

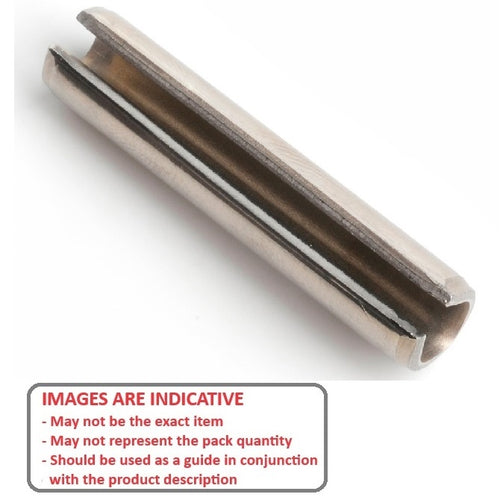

RP030-0100-4DiagramRP030-0100-4Image
